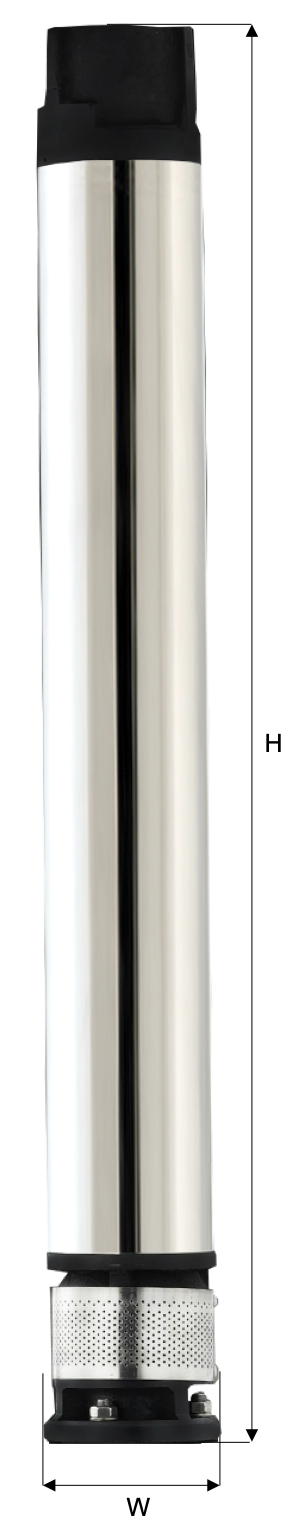

Suitable Properties of liquid for PumpSet |
||
---|---|---|
Specific Gravity: | 1.004 (max.) | |
Chloride content: | 500 ppm (max.) | |
Turbidity: | 50 ppm. Silica scale (max.) | |
Allowable Solids: | 3000 ppm. (max.) | |
pH Value: | 6.5 to 8.5 | |
Max. Temperature: | 33°C (max.) | |
Permissible Amt. of Sand: | 25 grams/cu. meter (max.) | |
Hardness: | 300 (max.) | |
Viscosity: | 1750000 m2/sec (max.) |
Material of Construction |
||
---|---|---|
Part Name | Material | |
Suction Casing | Grey Cast Iron or AISI 304 or AISI 316 | |
Suction Bush | Leaded Tin Bronze | |
DOL Bush | Leaded Tin Bronze | |
Suction Plate | Grey Cast Iron or AISI 304 or AISI 316 | |
Pump Shaft | Chromium Steel | |
Coupler | Chromium Steel | |
Impeller | Technopolymer or Chromium Steel | Diffuser Bowl | Grey Cast Iron or AISI 304 or AISI 316 |
Discharge Outlet | Grey Cast Iron or AISI 304 or AISI 316 |

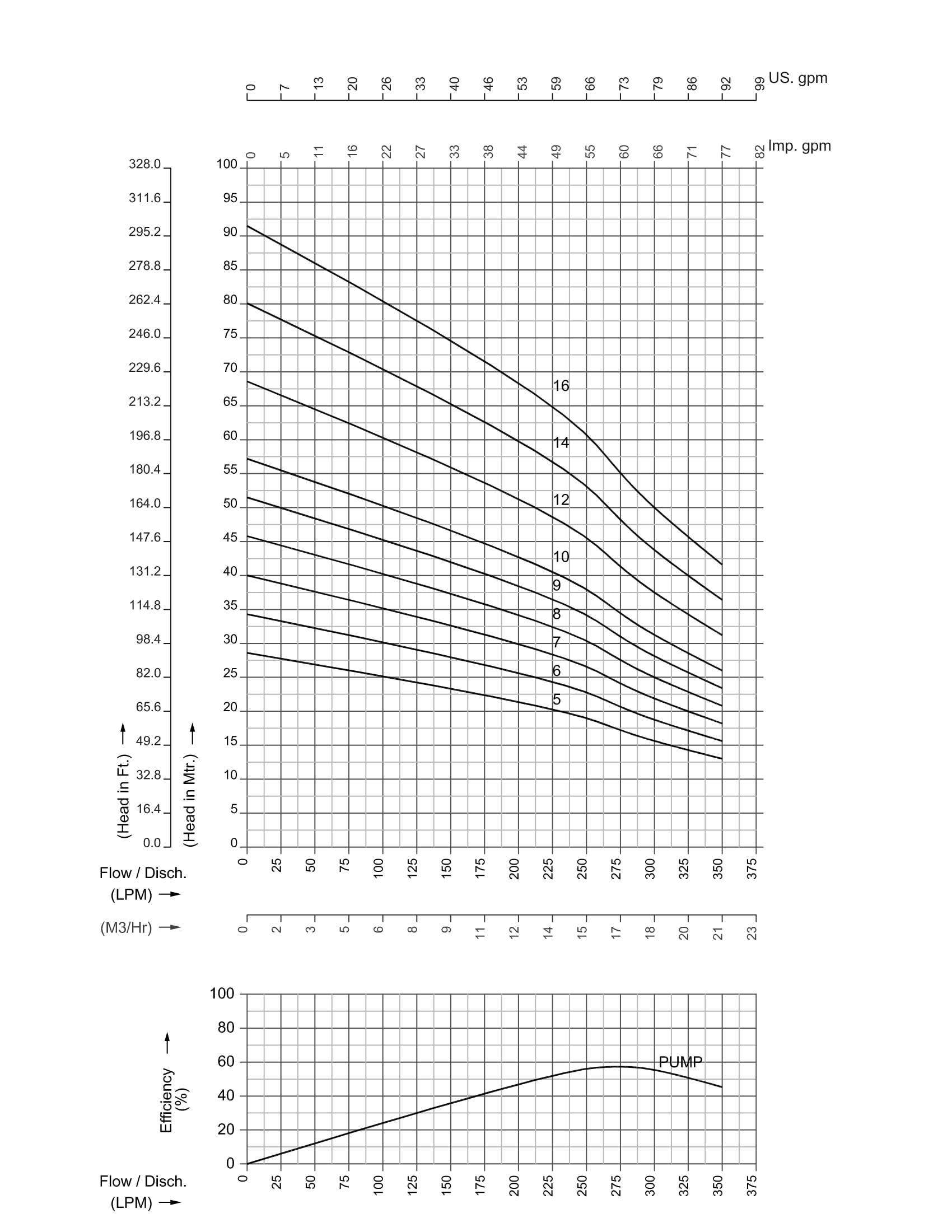

MODEL | STAGE | REQUIRED | l/sec | 0.0 | 3.7 | 4.5 | 5.0 | 6.4 | G Ø Outlet (Inch.) | |
---|---|---|---|---|---|---|---|---|---|---|
m³/h | 0.0 | 13.5 | 16.2 | 18.0 | 23.0 | |||||
HP | kW | l/min | 0 | 225 | 270.0 | 300 | 383 | |||
4GM018AA-05 | 5 | 2.00 | 1.50 | Head in Mtr. | 29 | 21 | 17.5 | 16 | 13 | 2" |
4GM018AA-06 | 6 | 2.00 | 1.50 | 34 | 25 | 21.0 | 19 | 16 | ||
4GM018AA-07 | 7 | 3.00 | 2.20 | 40 | 29 | 24.5 | 22 | 18 | ||
4GM018AA-08 | 8 | 3.00 | 2.20 | 46 | 34 | 28.0 | 25 | 21 | ||
4GM018AA-09 | 9 | 4.00 | 3.00 | 51 | 38 | 31.5 | 28 | 23 | ||
4GM018AA-10 | 10 | 5.00 | 3.70 | 57 | 42 | 35.0 | 31 | 26 | ||
4GM018AA-12 | 12 | 5.00 | 3.70 | 66 | 50 | 42.0 | 37 | 22 | ||
4GM018AB-14 | 14 | 6.00 | 4.50 | 77 | 59 | 49.0 | 43 | 25 | ||
4GM018AB-16 | 16 | 7.50 | 5.50 | 88 | 67 | 56.0 | 50 | 29 |
MODEL | G Ø Outlet (Inch.) | Height (H) | Width(W) | Weight | Volume | |||
---|---|---|---|---|---|---|---|---|
mm | ft. | mm | ft. | Kg | lb | cu.ft | ||
4GM018AA-05M | 2" | 611M | 2.00M | 98M | 0.32M | 9.26M | 20.42M | 0.32M |
4GM018AA-06M | 680M | 2.23M | 98M | 0.32M | 9.86M | 21.75M | 0.35M | |
4GM018AA-07M | 749M | 2.46M | 98M | 0.32M | 10.47M | 23.07M | 0.38M | |
4GM018AA-08M | 818M | 2.68M | 98M | 0.32M | 11.07M | 24.40M | 0.41M | |
4GM018AA-09M | 887M | 2.91M | 98M | 0.32M | 11.67M | 25.72M | 0.44M | |
4GM018AA-10M | 956M | 3.14M | 98M | 0.32M | 12.27M | 27.04M | 0.48M | |
4GM018AA-12M | 1094M | 3.59M | 98M | 0.32M | 13.47M | 29.69M | 0.54M | |
4GM018AB-14M | 1232M | 4.04M | 98M | 0.32M | 14.67M | 32.34M | 0.60M | |
4GM018AB-16M | 1370M | 4.49M | 98M | 0.32M | 15.87M | 34.99M | 0.67M |
