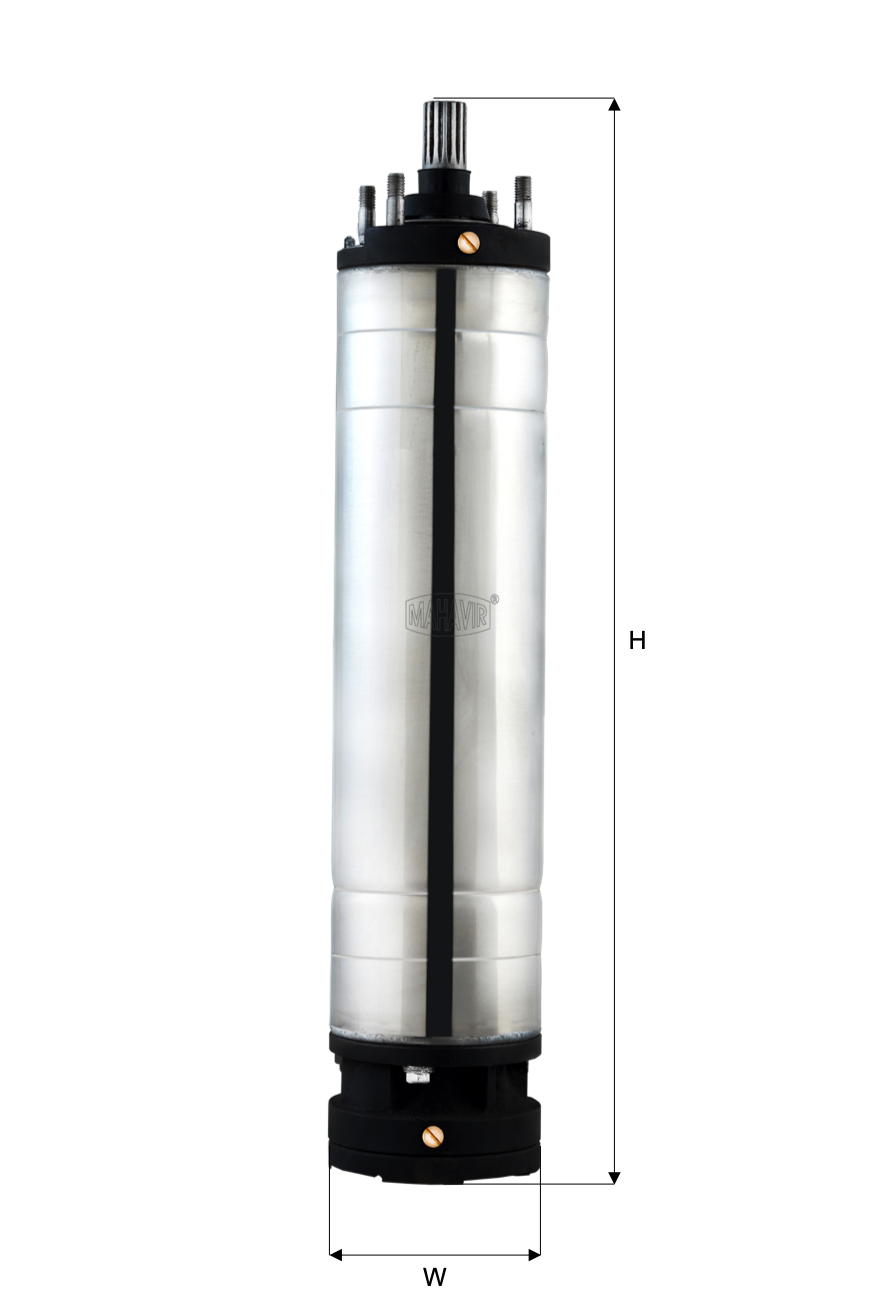

5W Motors – 50 Hz

Mahavir’s 5W Submersible well pump set are suitable for wells of minimum 127mm or larger in diameter. Continuous rating in 5°C to 25°C water as per IEC 60034-1

This product is designed for best efficiency and can be easily used for Solar water pumping system, Agriculture, High rise buildings and so on

Pump set comes with a 2-Pole water cooled and lubricated rewindable type motor with insulation class B and having die casted squirrel caged rotors resulting into optimum efficiencies. And a pump having semi axial hydrodynamic layout Thus, suitable for operations when completely immersed in water or suitable liquids.

Technical Data
Parameter 1-Phase Model 3-Phase Model
Rated Voltage 230V AC 415V AC
Rated Frequency 50 Hz 50 Hz
Rated Speed 2900 RPM 2900 RPM
Voltage tolerance -15% to +6% -15% to +6%
Protection IP68 IP68
Max. Starts per hour 10 10
Min. Start per month 1 1
Rotation Anticlockwise Anticlockwise
Max. Temperature 33°C 33°C
Mounting Standards NEMA Standards NEMA Standards
Starting Method Capacitor start and run Star or Start/Delta
Insulation Class B B

Material of Construction
Part Name Material
Upper and lower housing Grey Cast Iron or AISI 304 or AISI 316 or Brass
Motor shaft Chromium Steel
Bearing bush Leaded Tin Bronze
Rotor laminations Electrical Sheet Steel
Rotor conductor core EC Copper or Die Cast aluminum
Stator laminations Electrical Sheet Steel
Stator windings PVC or Polywrap Electro Grade Copper
Breather diaphragm Nitrile Rubber
Thrust bearing Resin & C40 V/S SS 420
Stator casing Stainless Steel Sheet
Cable gland Nitrile Rubber
Cable conductor Electro Grade Copper
Cable insulation PVC or Rubber sheathed

Model De-Code
