6:8W Pump SS RF – 50 Hz

Mahavir’s 4W Submersible well pump set are suitable for wells of minimum 100mm or larger in internal diameter. Continuous rating in 5°C to 25°C water as per IEC 60034-1

This product is designed for best efficiency and can be best used for Solar Water pumping,Agriculture, Industrial water supply, Pressure boosting, Firefighting, Municipality and water works schemes

Pump set comes with a 2-Pole water cooled and lubricated rewindable type motor with insulation class B and a pump having semi-axial and radial hydrodynamic layout Thus, suitable for operations when completely immersed in water or suitable liquids.

Suitable Properties of liquid for PumpSet
Specific Gravity:	1.004 (max.)
Chloride content:	500 ppm (max.)
Turbidity:	50 ppm. Silica scale (max.)
Allowable Solids:	3000 ppm. (max.)
pH Value:	6.5 to 8.5
Max. Temperature:	33°C (max.)
Permissible Amt. of Sand:	25 grams/cu. meter (max.)
Hardness:	300 (max.)
Viscosity:	1750000 m2/sec (max.)

Material of Construction
Part Name	Material
Suction Casing	Grey Cast Iron or AISI 304 or AISI 316
Suction Bush	Leaded Tin Bronze
DOL Bush	Leaded Tin Bronze
Suction Plate	Grey Cast Iron or AISI 304 or AISI 316
Pump Shaft	Chromium Steel
Coupler	Chromium Steel
Impeller	Technopolymer or Chromium Steel
Diffuser Bowl	Grey Cast Iron or AISI 304 or AISI 316
Discharge Outlet	Grey Cast Iron or AISI 304 or AISI 316

Model De-Code

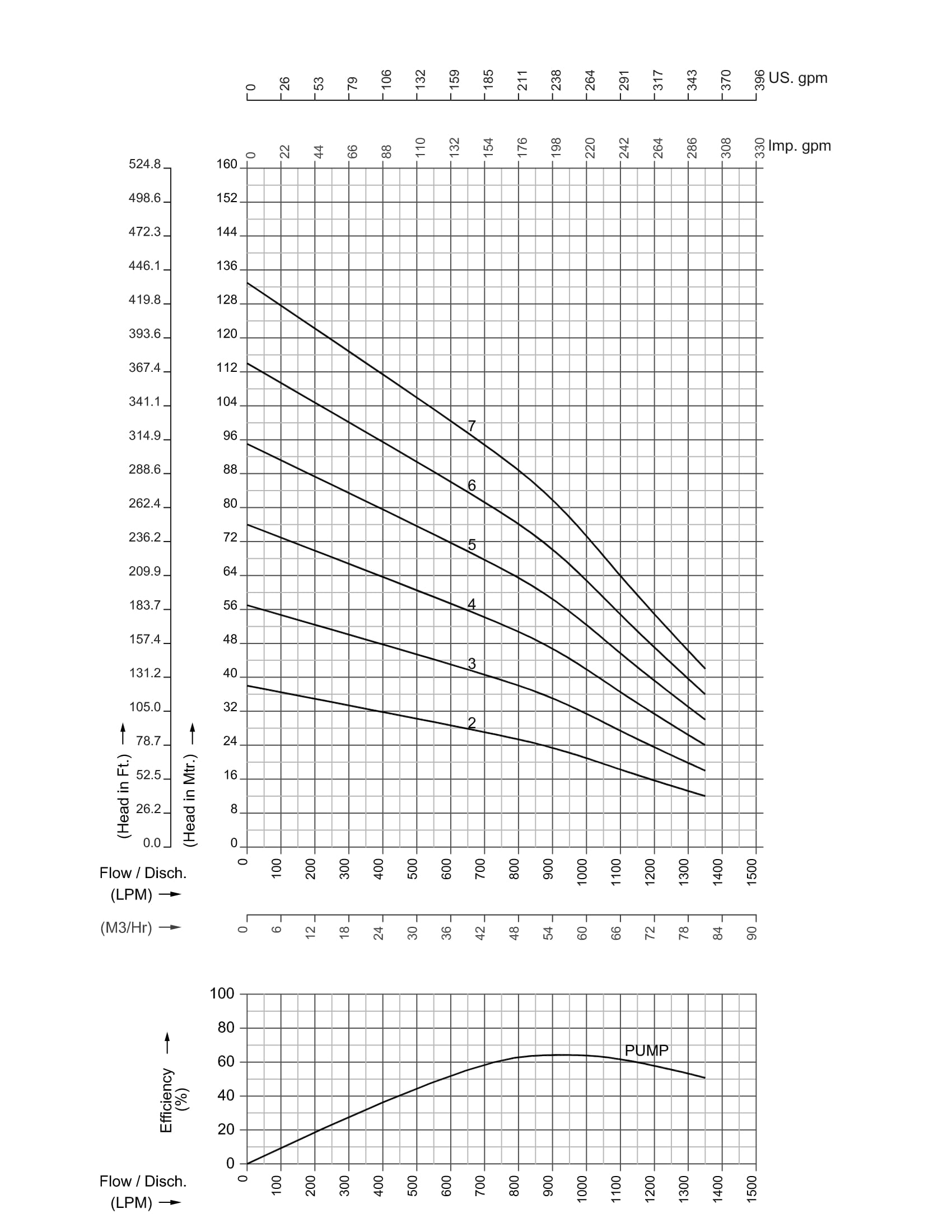

PERFORMANCE TABLE AND GRAPHS :

8DM054AA

MODEL	STAGE	REQUIRED		l/sec	0.0	10.8	15.0	18.3	22.5	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0	39	54.0	66	81
		HP	kW	l/min	0	650	900.0	1100	1350
8DM054AA-02	2	6.0	4.5	Head in Mtr.	38	28	24.0	18	12	3"
8DM054AA-03	3	10.0	7.5		57	42	36.0	27	18
8DM054AA-04	4	12.5	9.3		76	56	48.0	36	24
8DM054AA-05	5	15.0	11.0		95	70	60.0	45	30
8DM054AA-06	6	17.5	13.0		114	84	72.0	54	36
8DM054AA-07	7	20.0	15.0		133	98	84.0	63	42

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
8DM054AA-02	3"	532	1.75	196	0.64	27.68	61.02	0.71
8DM054AA-03		652	2.14	196	0.64	35.09	77.36	0.84
8DM054AA-04		772	2.53	196	0.64	42.50	93.69	0.97
8DM054AA-05		892	2.93	196	0.64	49.91	110.02	1.11
8DM054AA-06		1012	3.32	196	0.64	57.31	126.36	1.24
8DM054AA-07		1132	3.71	196	0.64	64.72	142.69	1.38

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
8DM096AA-01	4"	465	1.53	196	0.64	24.78	54.64	0.82
8DM096AA-02		595	1.95	196	0.64	36.05	79.48	1.01
8DM096AA-03		725	2.38	196	0.64	47.32	104.32	1.20
8DM096AA-04		855	2.81	196	0.64	58.59	129.16	1.39

6:8W Pump SS RF – 50 Hz

Suitable Properties of liquid for PumpSet

Material of Construction

Model De-Code

PERFORMANCE TABLE AND GRAPHS :

Menu

Products

Certificates

Contact

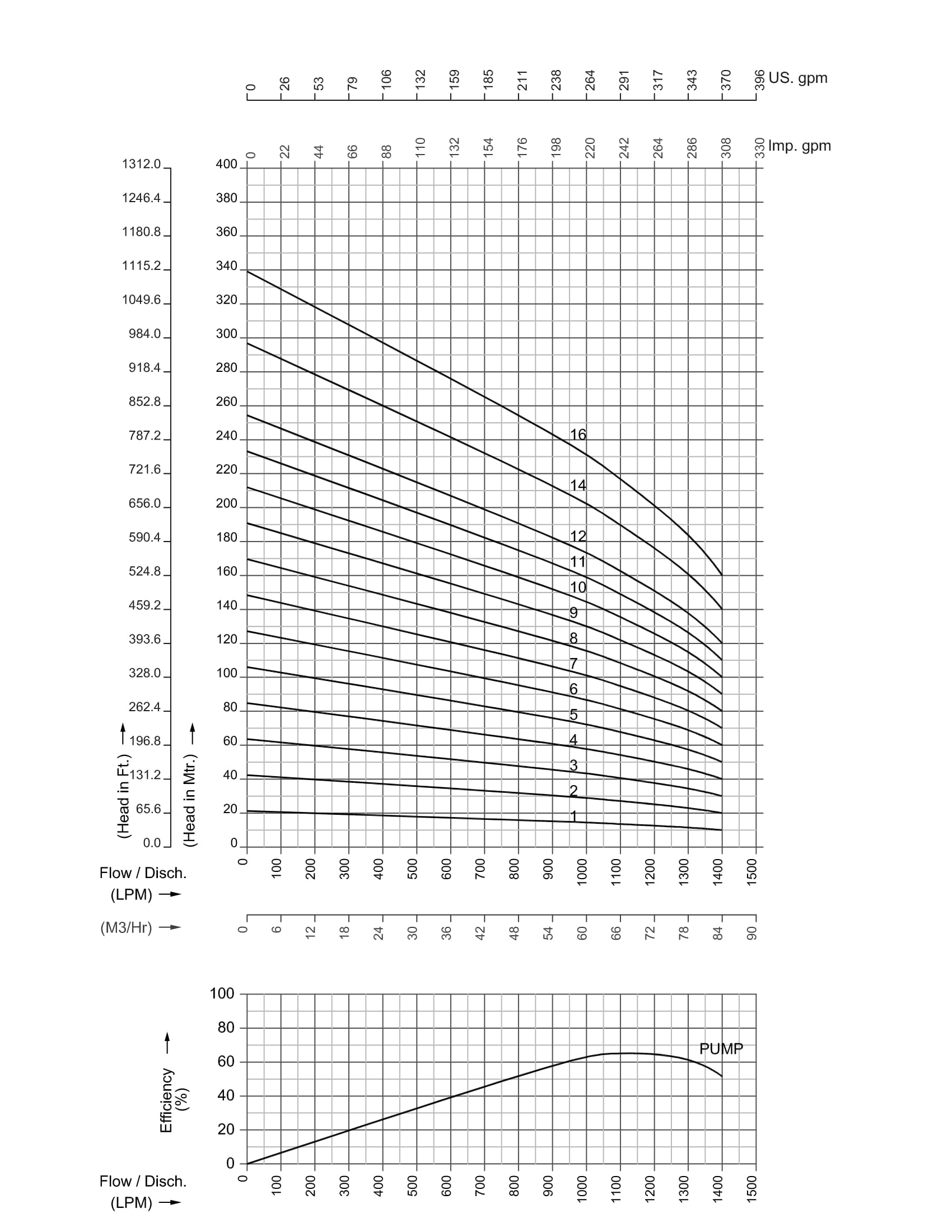

MODEL	STAGE	REQUIRED		l/sec	0.0	15.8	17.5	22.0	23.3	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0	57	63.0	79.2	84
		HP	kW	l/min	0	950	1050	1320	1400
8DM060AA-01	1	4.0	3.0	Head in Mtr.	21	15	14	12	10	4"
8DM060AA-02	2	7.5	5.5		42	30	28	23	20
8DM060AA-03	3	12.5	9.3		64	45	42	35	30
8DM060AA-04	4	15.0	11.0		85	60	56	46	40
8DM060AA-05	5	20.0	15.0		106	75	70	58	50

MODEL	STAGE	REQUIRED		l/sec	0.0	19.2	20.5	25.0	27.5	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0	69	73.8	90	99
		HP	kW	l/min	0	1150	1230	1500	1650
8DM078AA-01	1	5.0	3.7	Head in Mtr.	22	16	14.0	12	10	4"
8DM078AA-02	2	10.0	7.5		44	31	28.0	24	20
8DM078AA-03	3	15.0	11.0		67	47	42.0	36	30
8DM078AA-04	4	20.0	15.0		89	62	56.0	48	40
8DM078AA-05	5	25.0	18.0		111	78	70.0	60	50

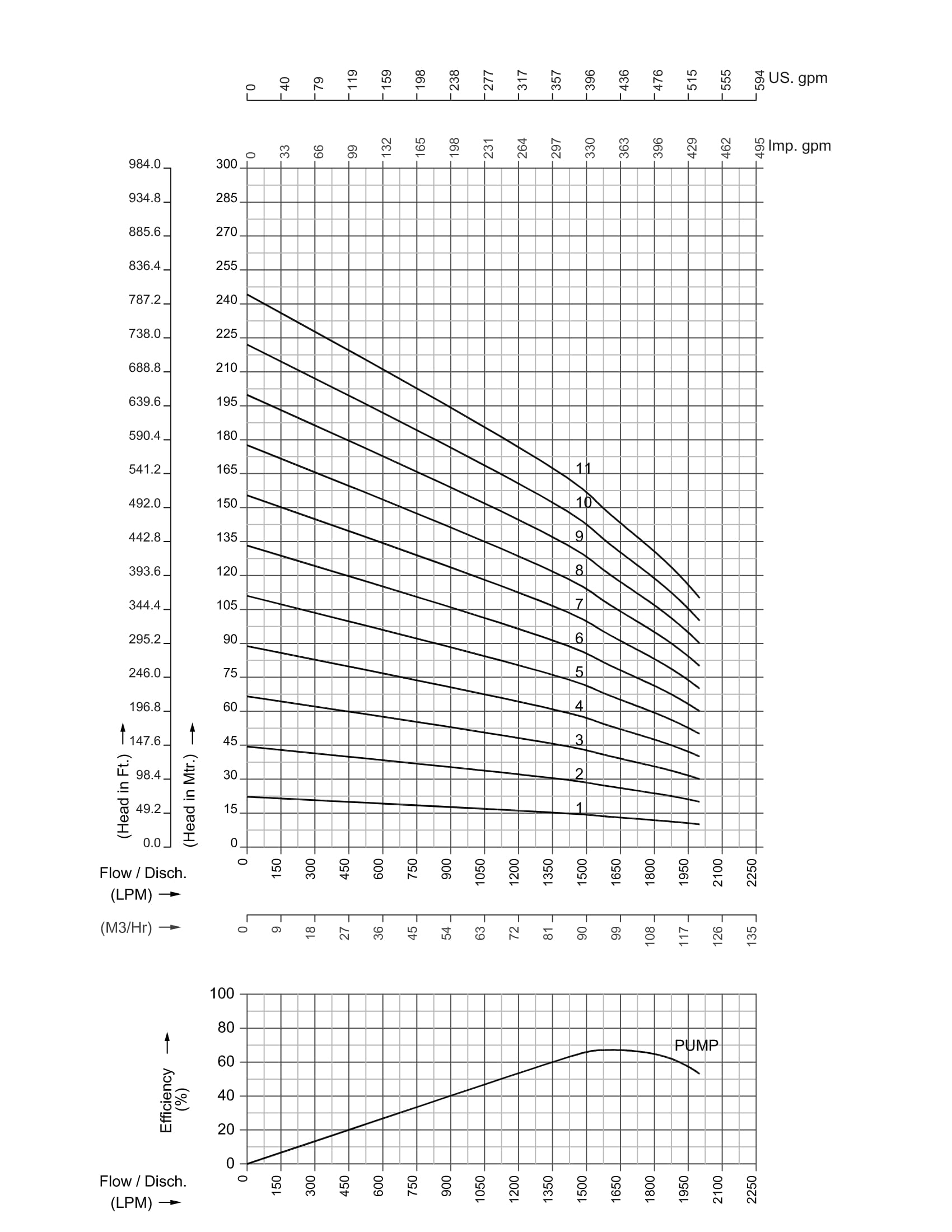

MODEL	STAGE	REQUIRED		l/sec	0.0	24.2	25.0	29.2	33.3	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0	87	90.0	105	120
		HP	kW	l/min	0	1450	1500.0	1750	2000
8DM096AA-01	1	6.0	4.5	Head in Mtr.	22	15	14.0	12	10	4"
8DM096AA-02	2	12.5	9.3		44	30	28.0	24	20
8DM096AA-03	3	17.5	13.0		66	45	41.0	36	30
8DM096AA-04	4	25.0	18.0		88	60	56.0	48	40

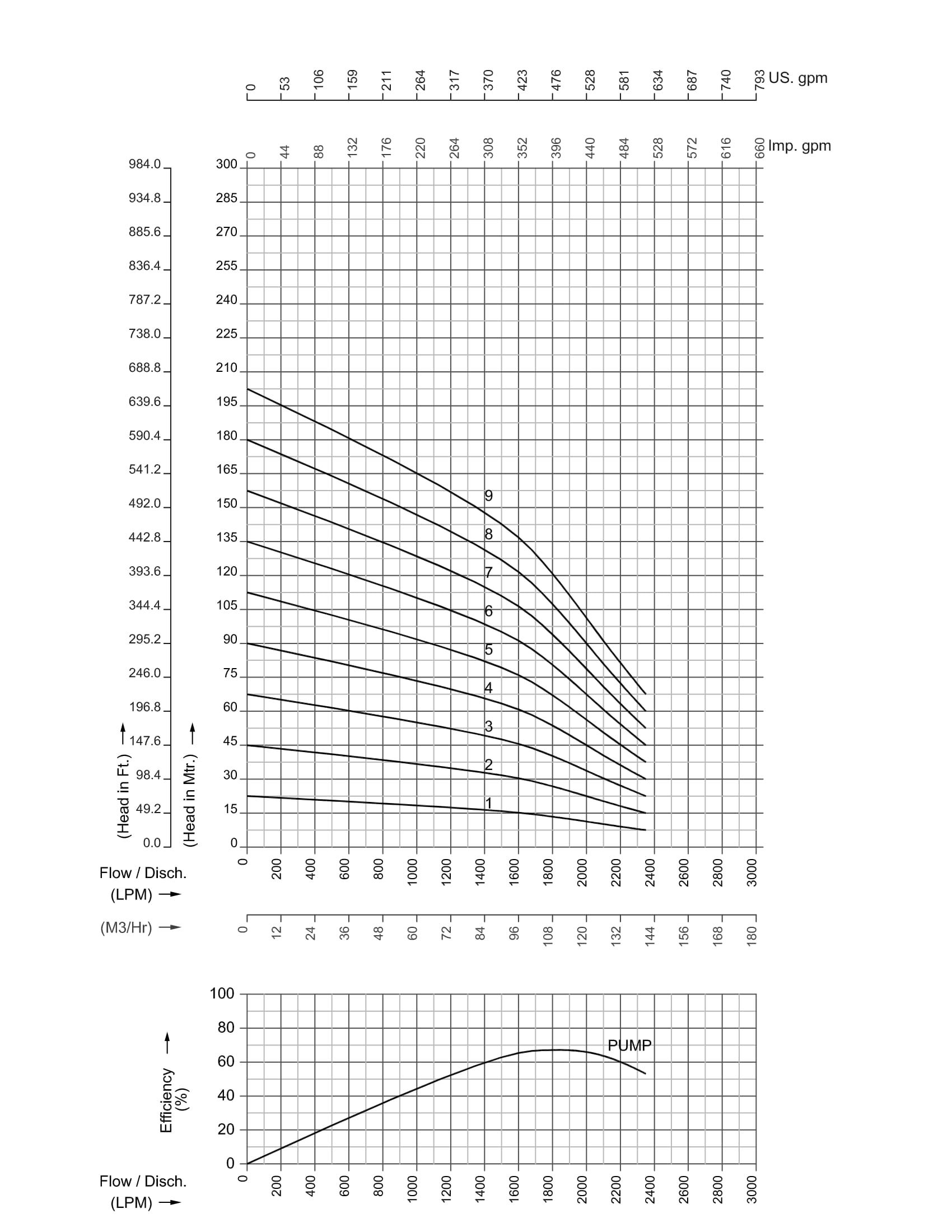

MODEL	STAGE	REQUIRED		l/sec	0.0	23.3	29.5	35.0	39.2	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0	84	106.2	126	141
		HP	kW	l/min	0	1400	1770.0	2100	2350
8DM108AA-01	1	7.5	5.5	Head in Mtr.	22	17	14.0	10	8	4"
8DM108AA-02	2	15.0	11.0		44	34	28.0	20	15
8DM108AA-03	3	20.0	15.0		66	51	41.0	30	23

Product Details

6:8W Pump SS RF – 50 Hz

Suitable Properties of liquid for PumpSet

Material of Construction

Model De-Code

PERFORMANCE TABLE AND GRAPHS :

8DM054AA

8DM060AA

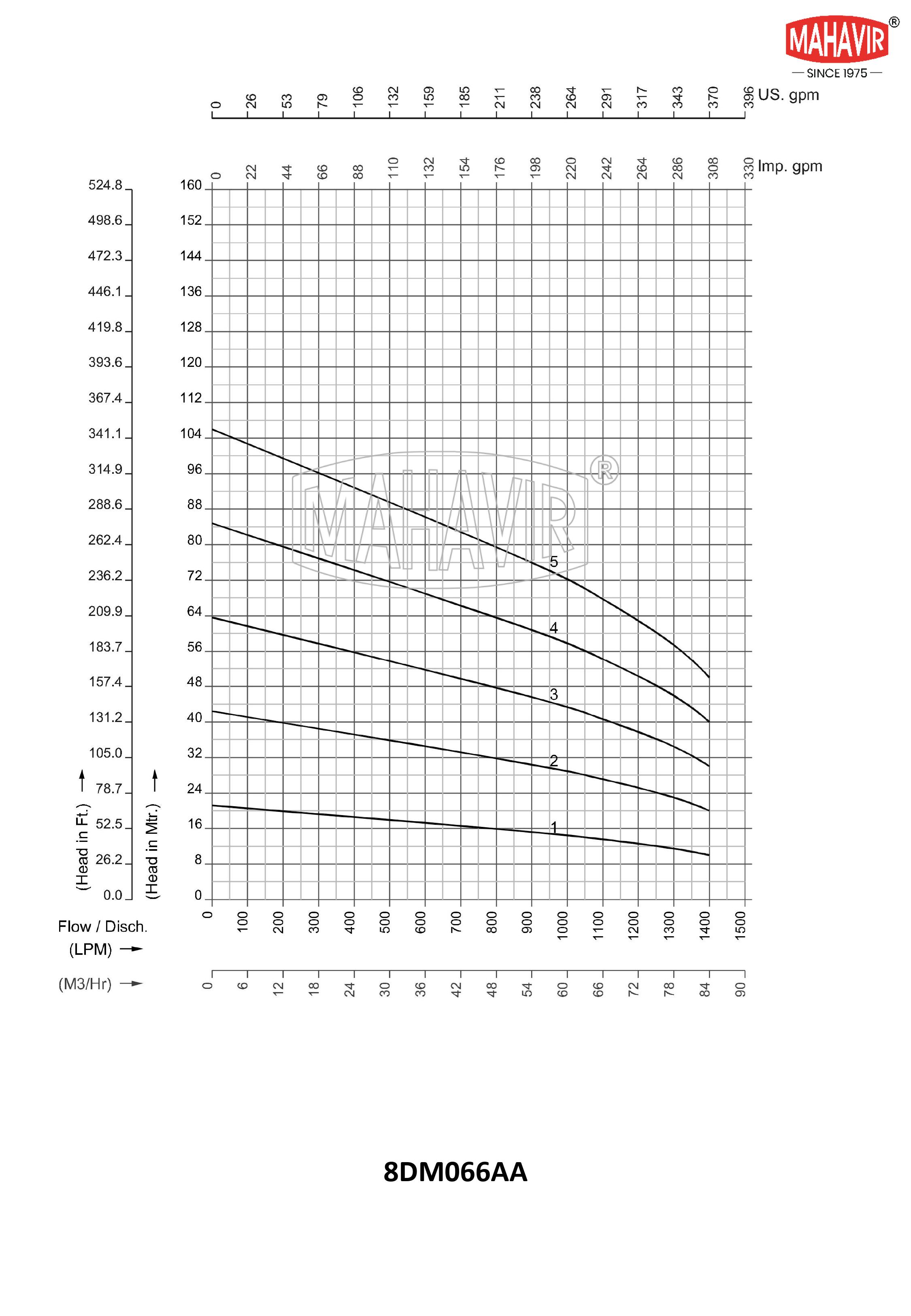

8DM066AA

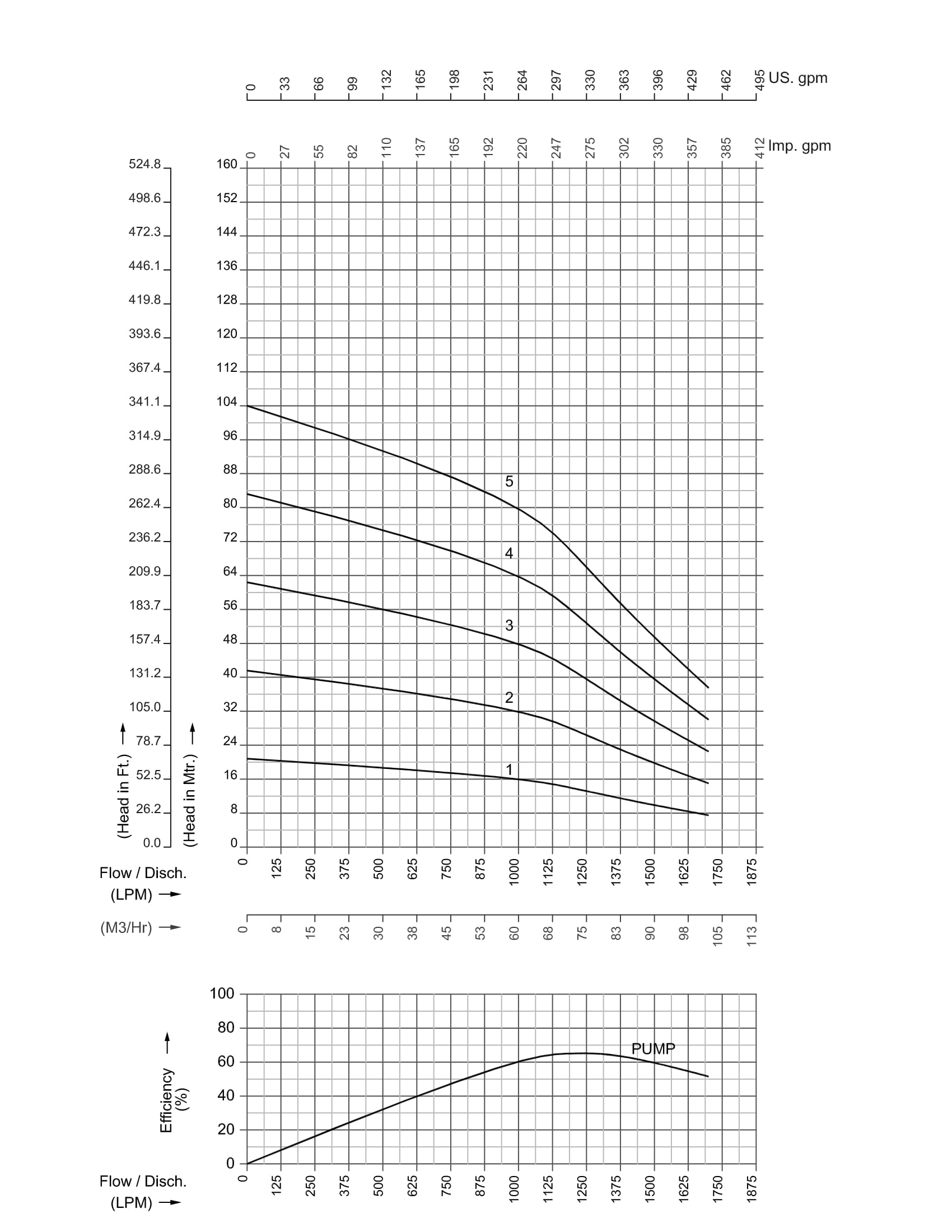

8DM072AA

8DM078AA

8DM096AA

8DM108AA
