Suitable Properties of liquid for PumpSet |
||
---|---|---|
Specific Gravity: | 1.004 (max.) | |
Chloride content: | 500 ppm (max.) | |
Turbidity: | 50 ppm. Silica scale (max.) | |
Allowable Solids: | 3000 ppm. (max.) | |
pH Value: | 6.5 to 8.5 | |
Max. Temperature: | 33°C (max.) | |
Permissible Amt. of Sand: | 25 grams/cu. meter (max.) | |
Hardness: | 300 (max.) | |
Viscosity: | 1750000 m2/sec (max.) |

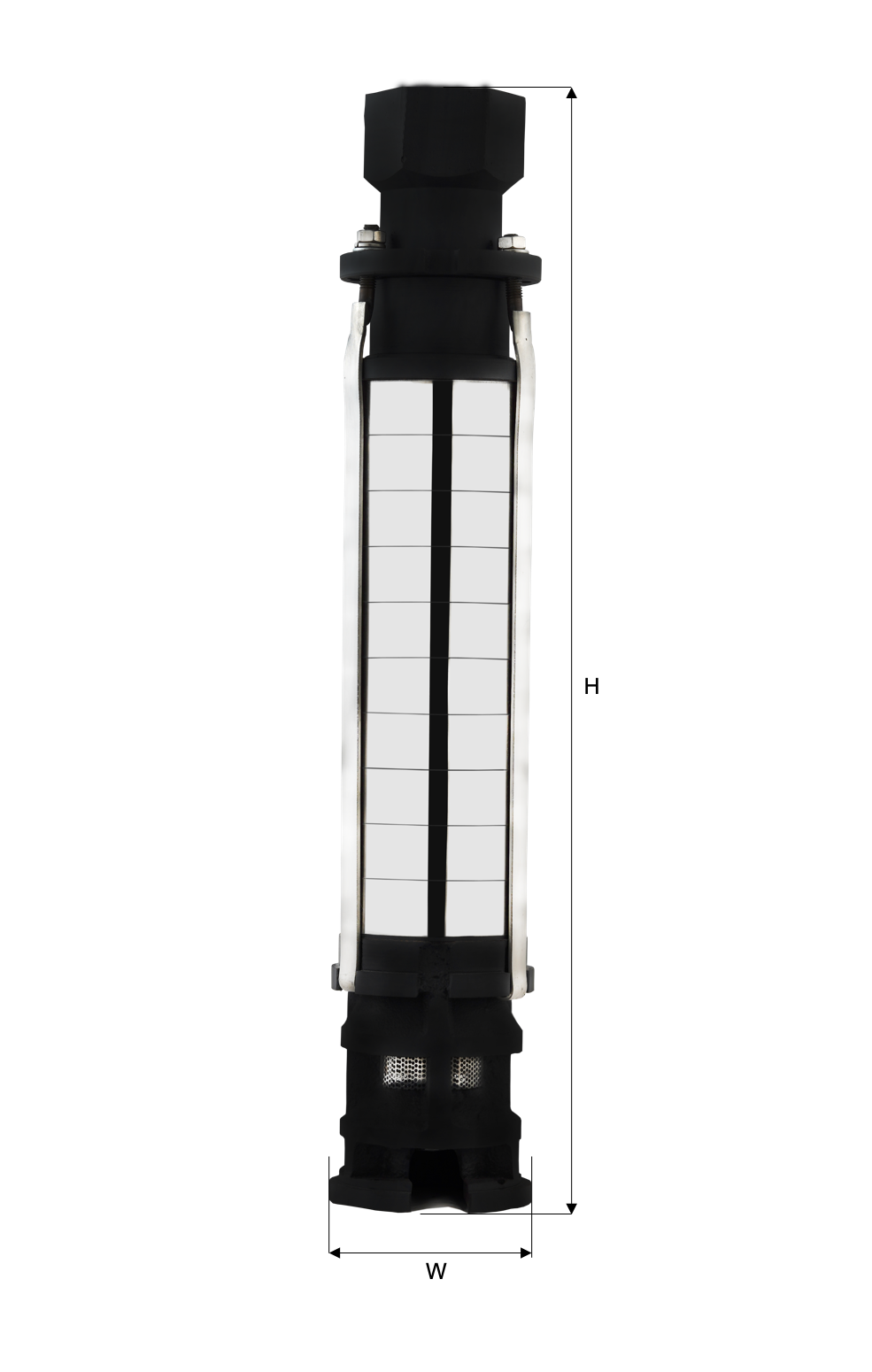

Material of Construction |
||
---|---|---|
Part Name | Material | |
Suction Casing | Grey Cast Iron or AISI 304 or AISI 316 | |
Suction Bush | Leaded Tin Bronze | |
DOL Bush | Leaded Tin Bronze | |
Suction Plate | Grey Cast Iron or AISI 304 or AISI 316 | |
Pump Shaft | Chromium Steel | |
Coupler | Chromium Steel | |
Impeller | Technopolymer or Chromium Steel | Diffuser Bowl | Grey Cast Iron or AISI 304 or AISI 316 |
Discharge Outlet | Grey Cast Iron or AISI 304 or AISI 316 |
MODEL | STAGE | REQUIRED | l/sec | 0.0 | 0.3 | 0.4 | 0.6 | 0.6 | G Ø Outlet (Inch.) | |
---|---|---|---|---|---|---|---|---|---|---|
m³/h | 0.0 | 1.1 | 1.5 | 2.0 | 2.3 | |||||
HP | kW | l/min | 0 | 18 | 24.6 | 33 | 38 | |||
4GR001AA-08 | 8 | 0.50 | 0.37 | Head in Mtr. | 48 | 40 | 33.6 | 31 | 24 | 1.25 |
4GR001AA-12 | 12 | 0.75 | 0.56 | 72 | 60 | 50.4 | 47 | 36 | ||
4GR001AA-16 | 16 | 1.00 | 0.75 | 96 | 80 | 67.2 | 62 | 48 | ||
4GR001AA-21 | 21 | 1.50 | 1.10 | 126 | 105 | 88.2 | 82 | 63 | ||
4GR001AA-27 | 27 | 2.00 | 1.50 | 162 | 135 | 113.4 | 105 | 81 | ||
4GR001AA-35 | 35 | 3.00 | 2.20 | 210 | 175 | 147.0 | 137 | 105 |
MODEL | G Ø Outlet (Inch.) | Height (H) | Width(W) | Weight | Volume | |||
---|---|---|---|---|---|---|---|---|
mm | ft. | mm | ft. | Kg | lb | cu.ft | ||
4GR001AA-08 | 1.25" | 447 | 1.47 | 98 | 0.32 | 6.66 | 14.69 | 0.24 |
4GR001AA-12 | 537 | 1.76 | 98 | 0.32 | 7.34 | 16.18 | 0.28 | |
4GR001AA-16 | 628 | 2.06 | 98 | 0.32 | 8.01 | 17.66 | 0.32 | |
4GR001AA-21 | 776 | 2.54 | 98 | 0.32 | 9.04 | 19.94 | 0.39 | |
4GR001AA-27 | 912 | 2.99 | 98 | 0.32 | 10.05 | 22.16 | 0.46 | |
4GR001AA-35 | 1162 | 3.81 | 98 | 0.32 | 11.79 | 25.98 | 0.57 |
