4W Pump SS RF – 50 Hz

Mahavir’s 4W Submersible well pump set are suitable for wells of minimum 100mm or larger in internal diameter. Continuous rating in 5°C to 25°C water as per IEC 60034-1

This product is designed for best efficiency and can be best used for Solar Water pumping,Agriculture, Industrial water supply, Pressure boosting, Firefighting, Municipality and water works schemes

Pump set comes with a 2-Pole water cooled and lubricated rewindable type motor with insulation class B and a pump having semi-axial and radial hydrodynamic layout Thus, suitable for operations when completely immersed in water or suitable liquids.

Suitable Properties of liquid for PumpSet
Specific Gravity:	1.004 (max.)
Chloride content:	500 ppm (max.)
Turbidity:	50 ppm. Silica scale (max.)
Allowable Solids:	3000 ppm. (max.)
pH Value:	6.5 to 8.5
Max. Temperature:	33°C (max.)
Permissible Amt. of Sand:	25 grams/cu. meter (max.)
Hardness:	300 (max.)
Viscosity:	1750000 m2/sec (max.)

Material of Construction
Part Name	Material
Suction Casing	AISI 304 or AISI 410
Suction Bush	Nitrile Rubber
DOL Bush	Nitrile Rubber
Suction Plate	AISI 304 or AISI 410
Pump Shaft	AISI 304 or AISI 410
Coupler	AISI 304 or AISI 410
Impeller	AISI 304 or AISI 410
Diffuser Bowl	AISI 304 or AISI 410
Discharge Outlet	AISI 304 or AISI 410

Model De-Code

PERFORMANCE TABLE AND GRAPHS :

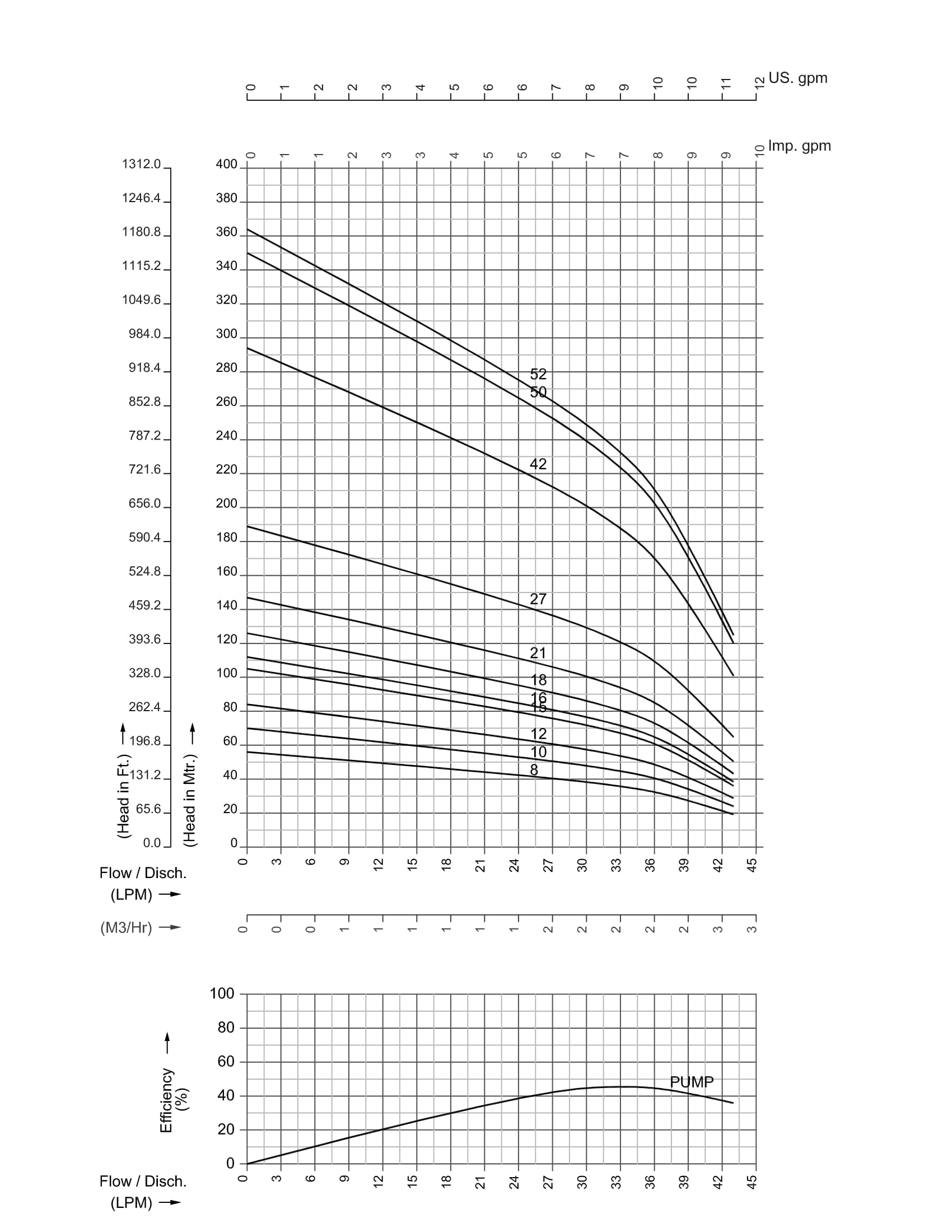

4BR002AA

MODEL	STAGE	REQUIRED		l/sec	0.0	0.4	0.6	0.6	0.7	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0.0	1.1	2.0	2.4	2.6
		HP	kW	l/min	0	25	33.0	37	43
4BR002AA-08	8	0.50	0.37	Head in Mtr.	56	42	36.0	32	19	1.25"
4BR002AA-10	10	0.50	0.37		70	53	45.0	40	24
4BR002AA-12	12	0.75	0.55		84	64	54.0	47	29
4BR002AA-15	15	0.75	0.55		105	80	68.0	59	36
4BR002AA-16	16	1.00	0.75		112	85	72.0	63	38
4BR002AA-18	18	1.00	0.75		126	95	81.0	71	43
4BR002AA-21	21	1.50	1.10		147	111	95.0	83	50
4BR002AA-27	27	1.50	1.10		189	143	122.0	107	65
4BR002AA-42	42	3.00	2.20		294	223	189.0	166	101
4BR002AA-50	50	3.00	2.20		350	265	225.0	198	120
4BR002AA-52	52	3.00	2.20		364	276	234.0	205	125

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
4BR002AA-08	1.25"	418	1.37	98	0.32	5.84	12.88	0.23
4BR002AA-10		460	1.51	98	0.32	6.29	13.88	0.25
4BR002AA-12		502	1.65	98	0.32	6.75	14.87	0.27
4BR002AA-15		565	1.85	98	0.32	7.42	16.36	0.30
4BR002AA-16		586	1.92	98	0.32	7.65	16.86	0.30
4BR002AA-18		628	2.06	98	0.32	8.10	17.86	0.32
4BR002AA-21		721	2.37	98	0.32	9.11	20.08	0.37
4BR002AA-27		847	2.78	98	0.32	10.46	23.07	0.43
4BR002AA-42		1192	3.91	98	0.32	14.18	31.26	0.58
4BR002AA-50		1390	4.56	98	0.32	16.32	35.98	0.68
4BR002AA-52		1432	4.70	98	0.32	16.77	36.97	0.70

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft

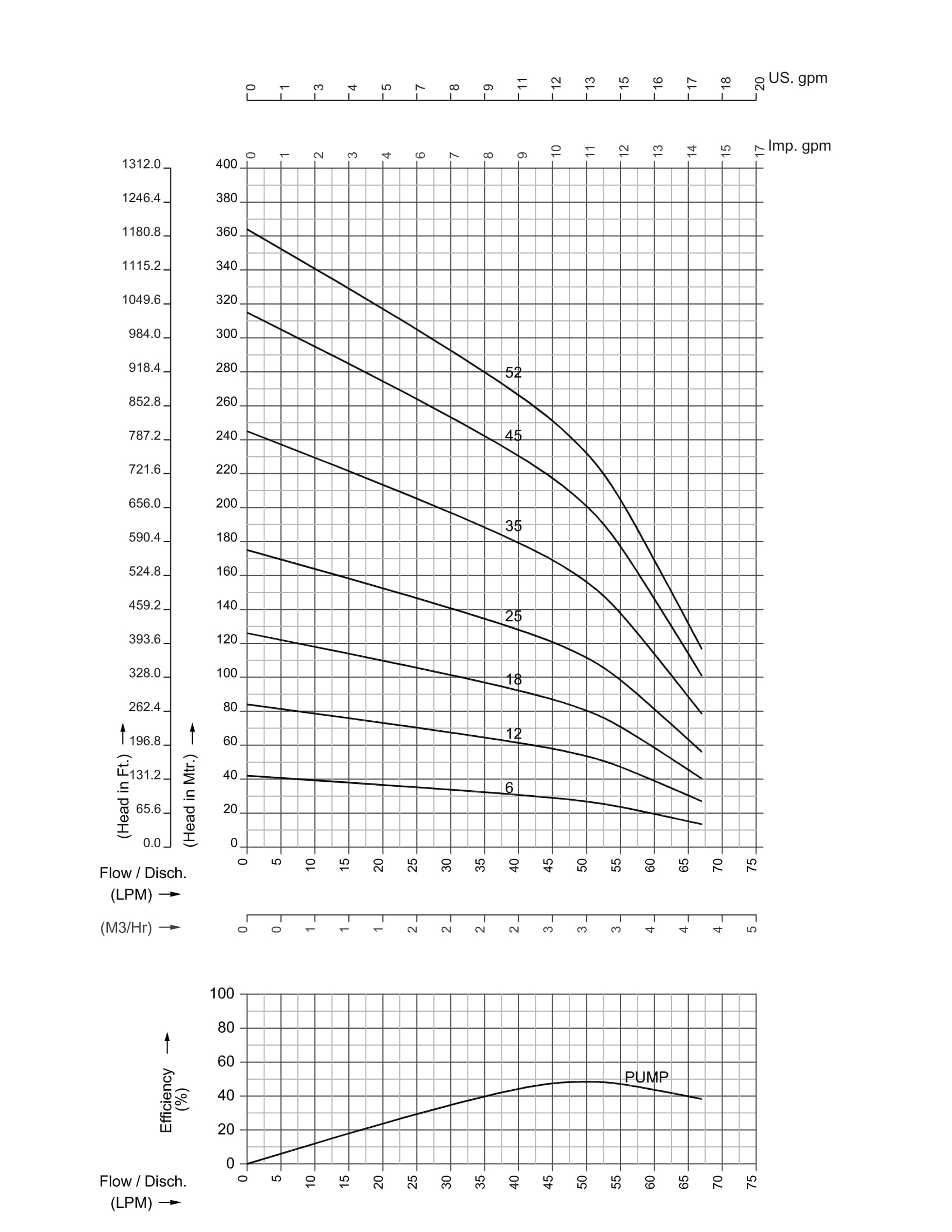

4BR003AA-06	1.25"	409	1.34	98	0.32	5.56	12.26	0.22
4BR003AA-12		568	1.86	98	0.32	7.08	15.61	0.30
4BR003AA-18		727	2.39	98	0.32	8.60	18.97	0.37
4BR003AA-25		943	3.09	98	0.32	10.71	23.62	0.47
4BR003AA-35		1238	4.06	98	0.32	13.58	29.94	0.61
4BR003AA-45		1533	5.03	98	0.32	16.45	36.27	0.74
4BR003AA-52		1718	5.64	98	0.32	18.23	40.18	0.83

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft

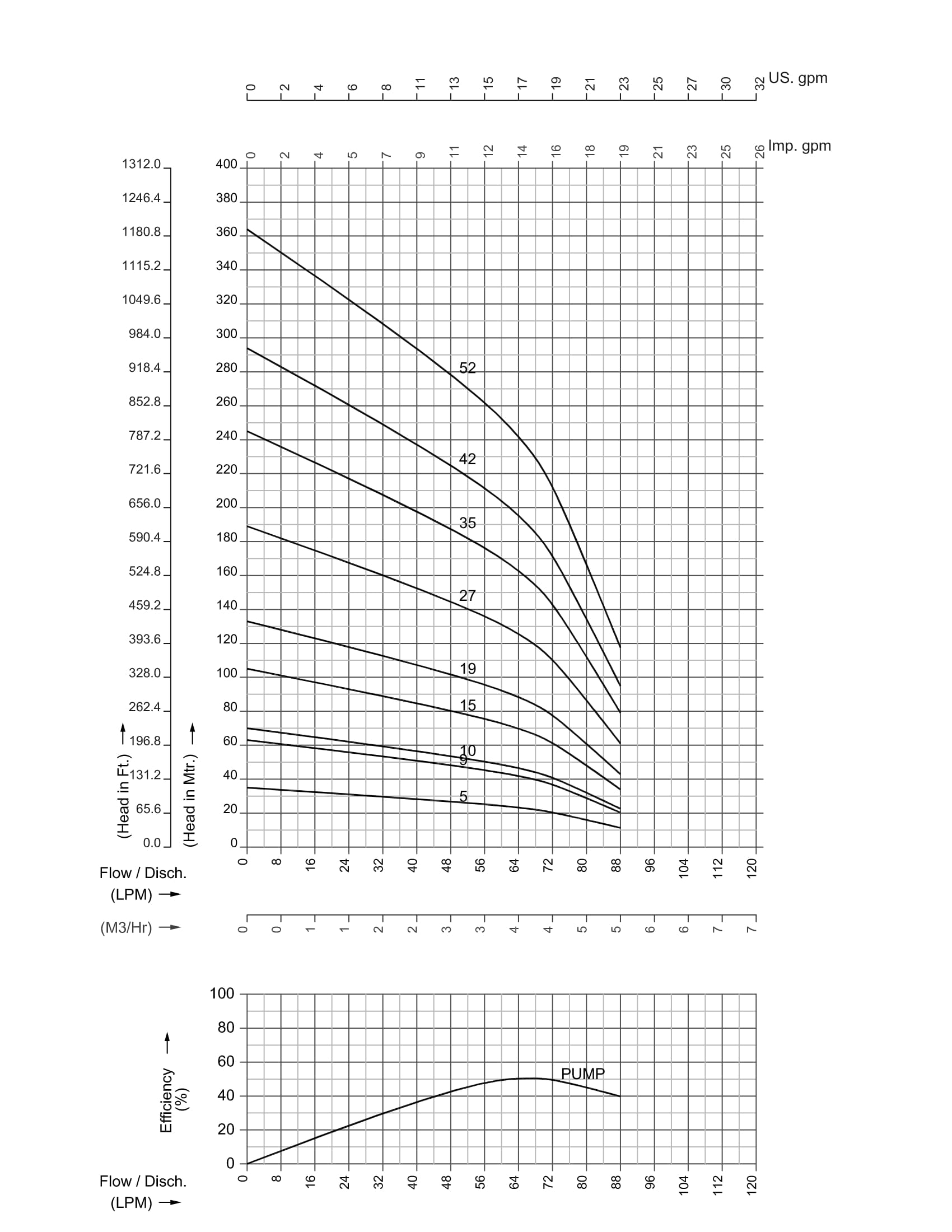

4BR004AA-05	1.5"	383	1.25	98	0.32	5.31	11.70	0.21
4BR004AA-09		489	1.60	98	0.32	6.32	13.94	0.26
4BR004AA-10		515	1.69	98	0.32	6.57	14.49	0.27
4BR004AA-15		648	2.12	98	0.32	7.84	17.29	0.33
4BR004AA-19		754	2.47	98	0.32	8.86	19.53	0.38
4BR004AA-27		996	3.27	98	0.32	11.22	24.73	0.49
4BR004AA-35		1238	4.06	98	0.32	13.58	29.94	0.61
4BR004AA-42		1453	4.77	98	0.32	15.69	34.59	0.70
4BR004AA-52		1748	5.73	98	0.32	18.56	40.92	0.84

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft

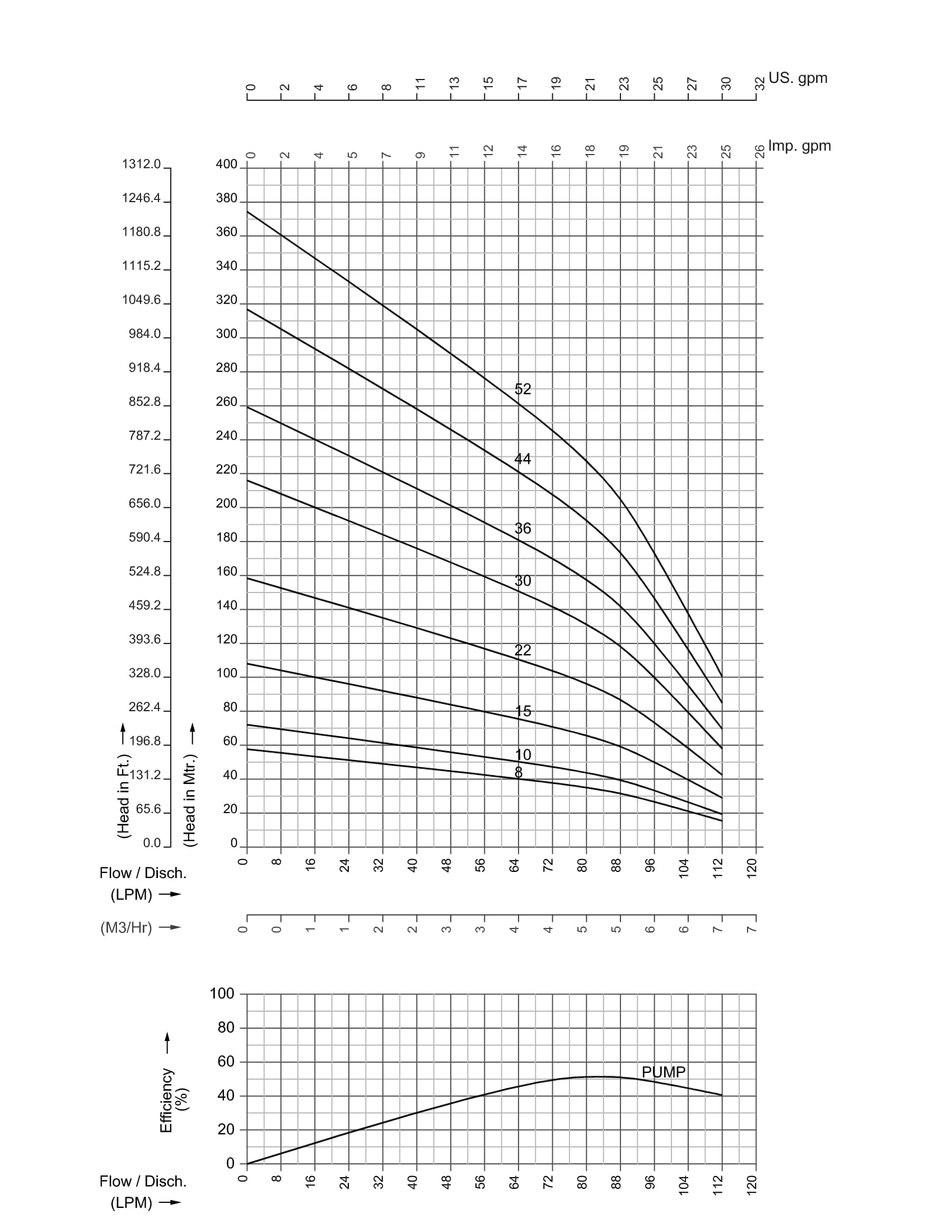

4BR005AA-08	1.5"	462	1.52	98	0.32	6.07	13.38	0.25
4BR005AA-10		515	1.69	98	0.32	6.57	14.49	0.27
4BR005AA-15		648	2.12	98	0.32	7.84	17.29	0.33
4BR005AA-22		863	2.83	98	0.32	9.95	21.94	0.43
4BR005AA-30		1075	3.53	98	0.32	11.98	26.41	0.53
4BR005AA-36		1264	4.15	98	0.32	13.84	30.50	0.62
4BR005AA-44		1506	4.94	98	0.32	16.20	35.71	0.73
4BR005AA-52		1748	5.73	98	0.32	18.56	40.92	0.84

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft

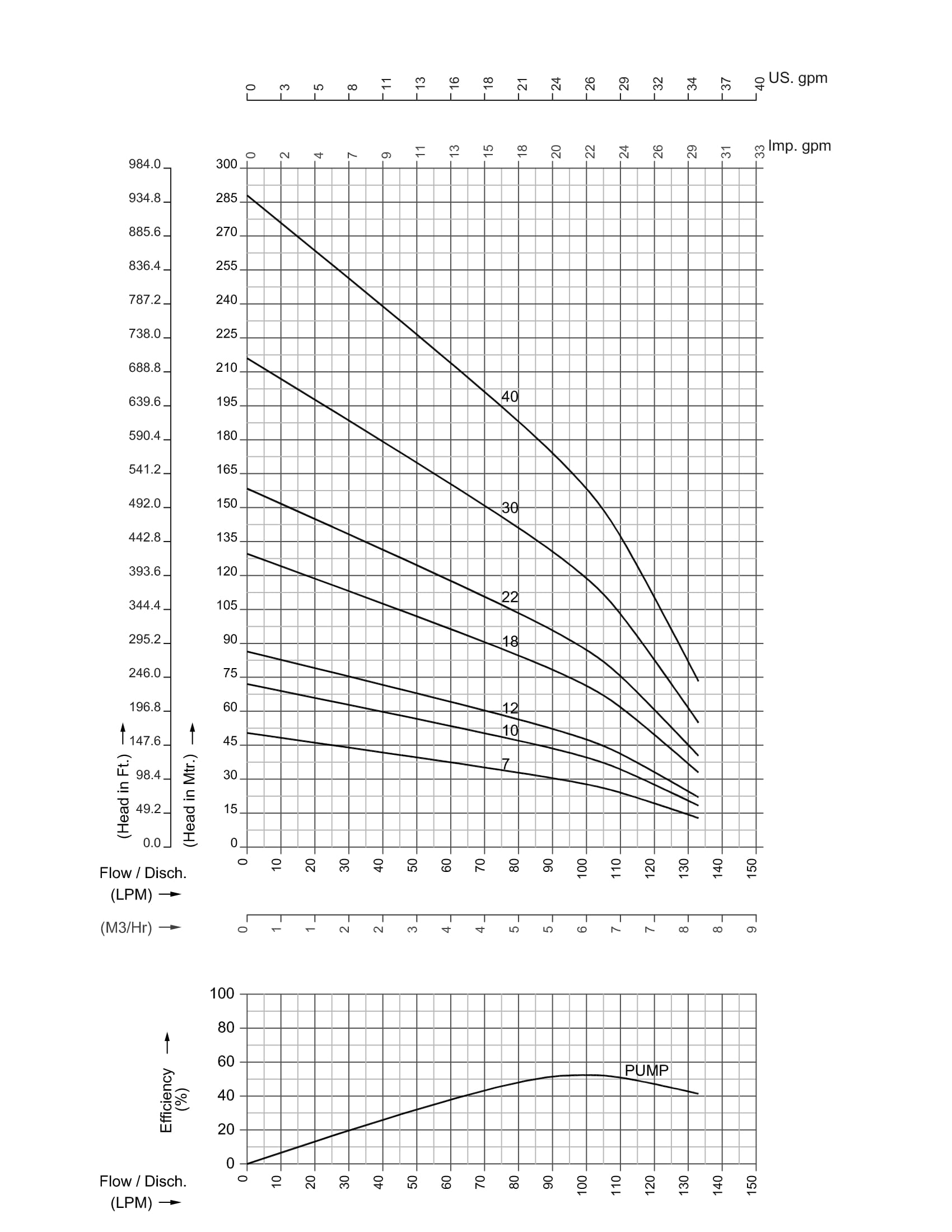

4BR006AA-07	1.5"	460	1.51	98	0.32	6.06	13.36	0.25
4BR006AA-10		550	1.80	98	0.32	6.93	15.27	0.29
4BR006AA-12		610	2.00	98	0.32	7.50	16.54	0.32
4BR006AA-18		790	2.59	98	0.32	9.24	20.36	0.40
4BR006AA-22		940	3.08	98	0.32	10.72	23.64	0.47
4BR006AA-30		1210	3.97	98	0.32	13.37	29.47	0.59
4BR006AA-40		1540	5.05	98	0.32	16.59	36.57	0.75

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
4BR008AA-05	2"	400	1.31	98	0.32	5.48	12.09	0.22
4BR008AA-08		490	1.61	98	0.32	6.35	13.99	0.26
4BR008AA-10		550	1.80	98	0.32	6.93	15.27	0.29
4BR008AA-14		670	2.20	98	0.32	8.08	17.81	0.34
4BR008AA-18		790	2.59	98	0.32	9.24	20.36	0.40
4BR008AA-22		940	3.08	98	0.32	10.72	23.64	0.47
4BR008AA-30		1210	3.97	98	0.32	13.37	29.47	0.59

4W Pump SS RF – 50 Hz

Suitable Properties of liquid for PumpSet

Material of Construction

Model De-Code

PERFORMANCE TABLE AND GRAPHS :

Menu

Products

Certificates

Contact

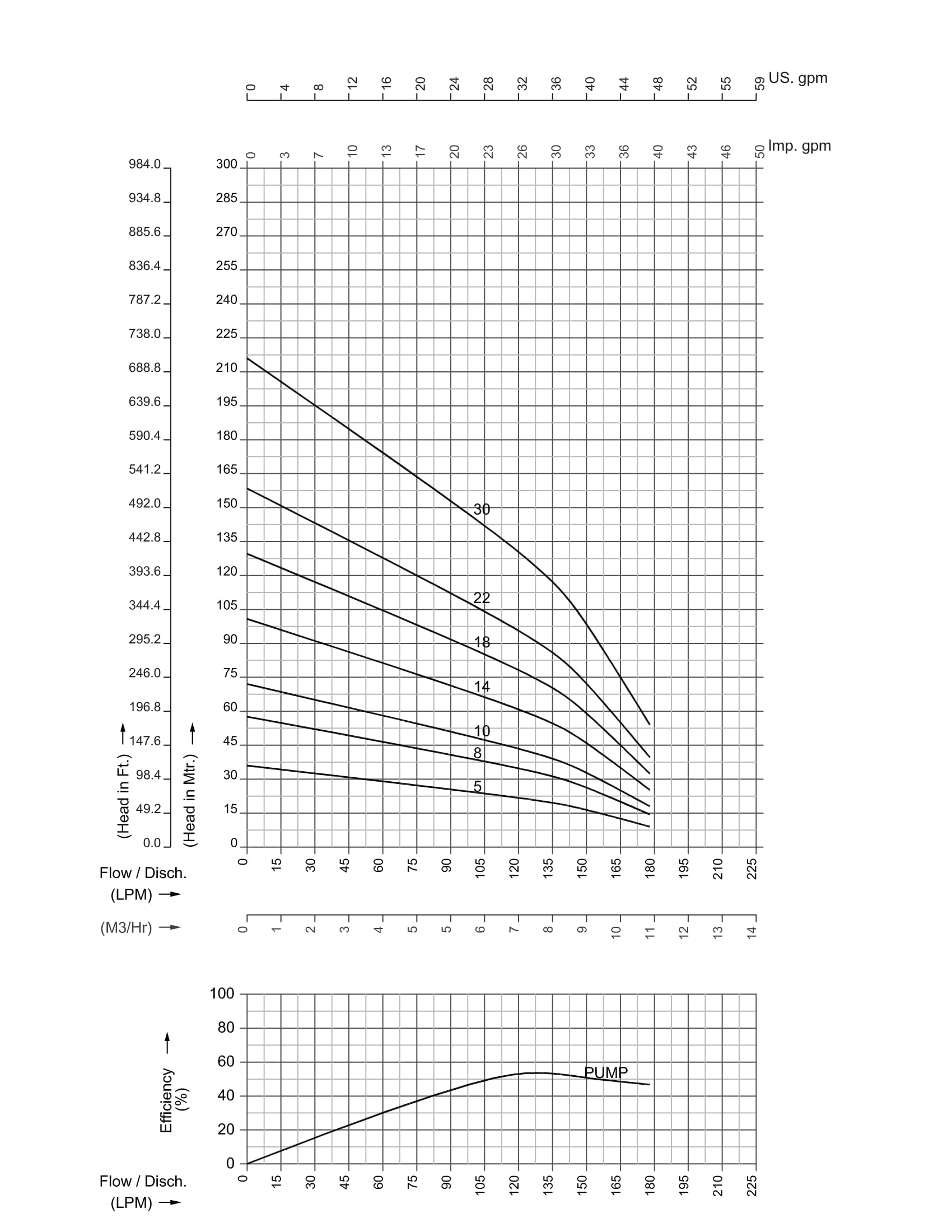

MODEL	STAGE	REQUIRED		l/sec	0.0	1.7	2.2	2.4	3.0	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0.0	6.0	8.0	8.8	10.7
		HP	kW	l/min	0	100	133.3	147	178
4BR008AA-05	5	1.00	0.75	Head in Mtr.	36	25	20.0	18	9	2"
4BR008AA-08	8	1.50	1.10		58	39	32.0	28	14
4BR008AA-10	10	2.00	1.50		72	49	40.0	35	18
4BR008AA-14	14	3.00	2.20		101	69	56.0	49	25
4BR008AA-18	18	4.00	3.00		130	88	72.0	63	32
4BR008AA-22	22	5.00	3.70		158	108	88.0	77	40
4BR008AA-30	30	6.00	4.50		216	147	120.0	105	54

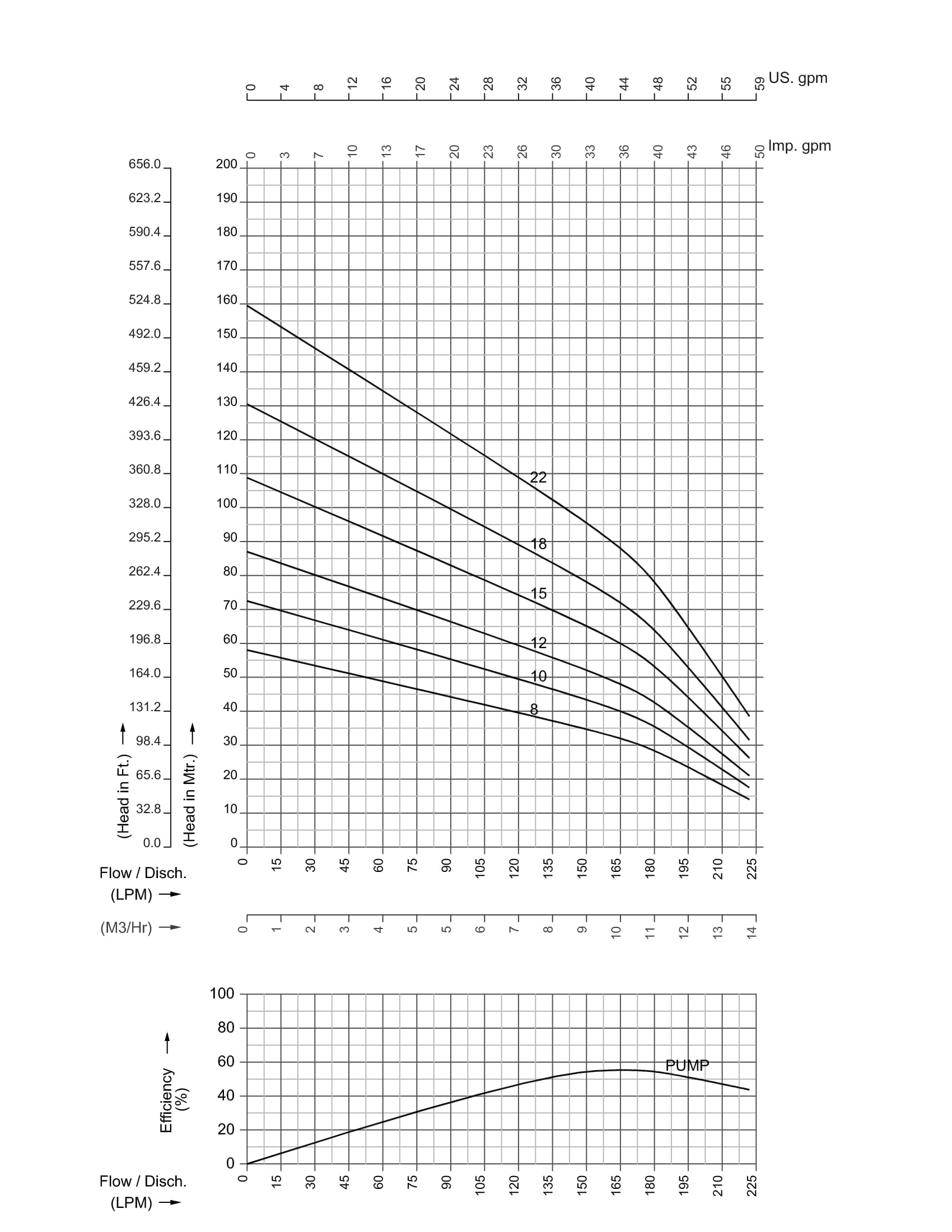

MODEL	STAGE	REQUIRED		l/sec	0.0	2.1	2.8	3.1	3.7	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0.0	7.5	167.0	11.0	13.3
		HP	kW	l/min	0	125	167.0	183	222
4BR010AA-05	5	1.50	1.10	Head in Mtr.	36	25	20.0	18	9	2"
4BR010AA-08	8	2.00	1.50		58	39	32.0	28	14
4BR010AA-12	12	3.00	2.20		86	59	48.0	42	22
4BR010AA-15	15	4	3		108	74	60.0	53	27
4BR010AA-18	18	5.00	3.70		130	88	72.0	63	32
4BR010AA-22	22	5.50	4.00		158	108	88.0	77	40
