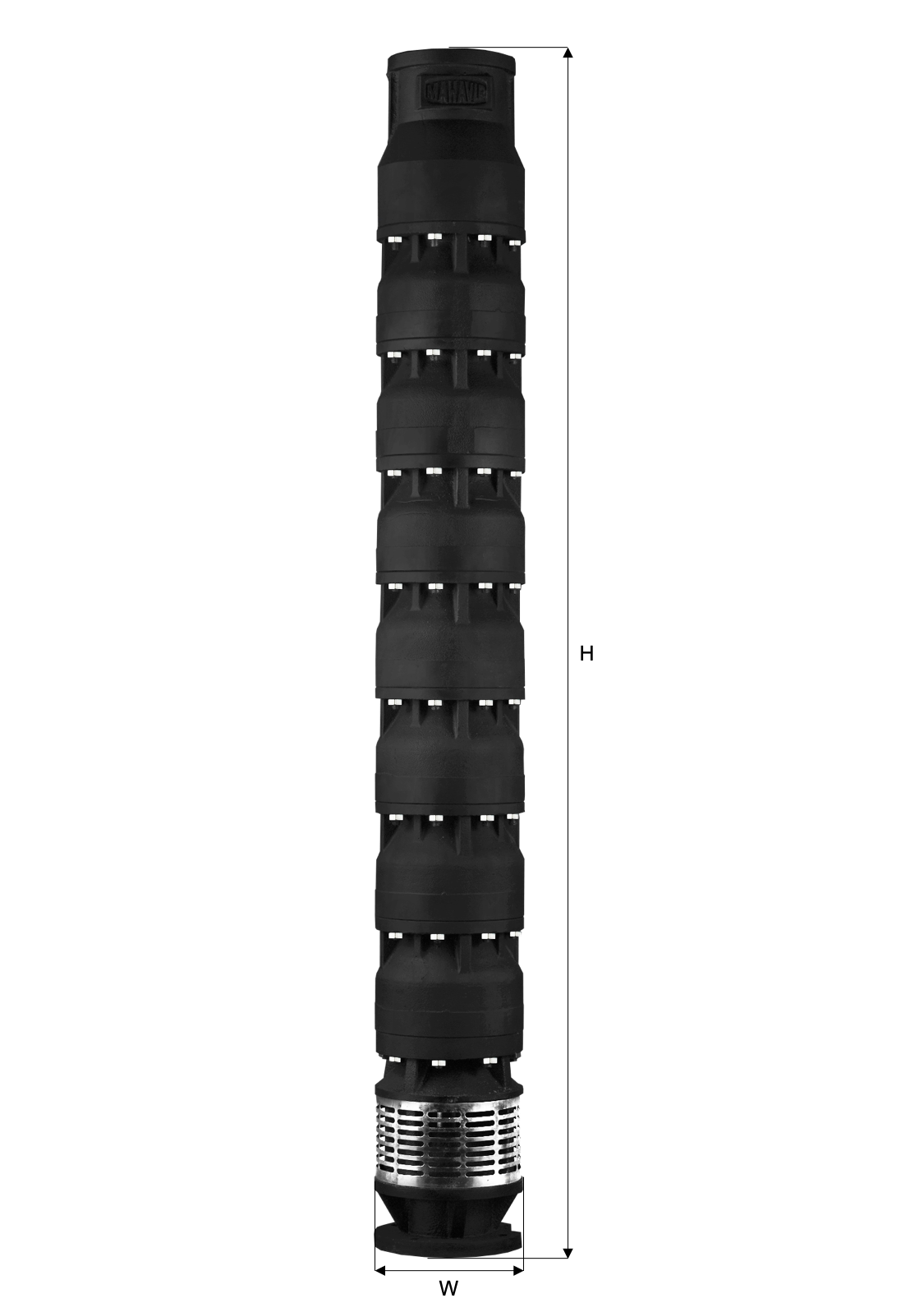

6W Pump CI MF – 50 Hz

Mahavir’s 4W Submersible well pump set are suitable for wells of minimum 100mm or larger in internal diameter. Continuous rating in 5°C to 25°C water as per IEC 60034-1

This product is designed for best efficiency and can be best used for Solar Water pumping,Agriculture, Industrial water supply, Pressure boosting, Firefighting, Municipality and water works schemes

Pump set comes with a 2-Pole water cooled and lubricated rewindable type motor with insulation class B and a pump having semi-axial and radial hydrodynamic layout Thus, suitable for operations when completely immersed in water or suitable liquids.

Suitable Properties of liquid for PumpSet
Specific Gravity:	1.004 (max.)
Chloride content:	500 ppm (max.)
Turbidity:	50 ppm. Silica scale (max.)
Allowable Solids:	3000 ppm. (max.)
pH Value:	6.5 to 8.5
Max. Temperature:	33°C (max.)
Permissible Amt. of Sand:	25 grams/cu. meter (max.)
Hardness:	300 (max.)
Viscosity:	1750000 m2/sec (max.)

Material of Construction
Part Name	Material
Suction Casing	Grey Cast Iron or AISI 304 or AISI 316
Suction Bush	Leaded Tin Bronze
DOL Bush	Leaded Tin Bronze
Suction Plate	Grey Cast Iron or AISI 304 or AISI 316
Pump Shaft	Chromium Steel
Coupler	Chromium Steel
Impeller	Technopolymer or Chromium Steel
Diffuser Bowl	Grey Cast Iron or AISI 304 or AISI 316
Discharge Outlet	Grey Cast Iron or AISI 304 or AISI 316

Model De-Code

PERFORMANCE TABLE AND GRAPHS :

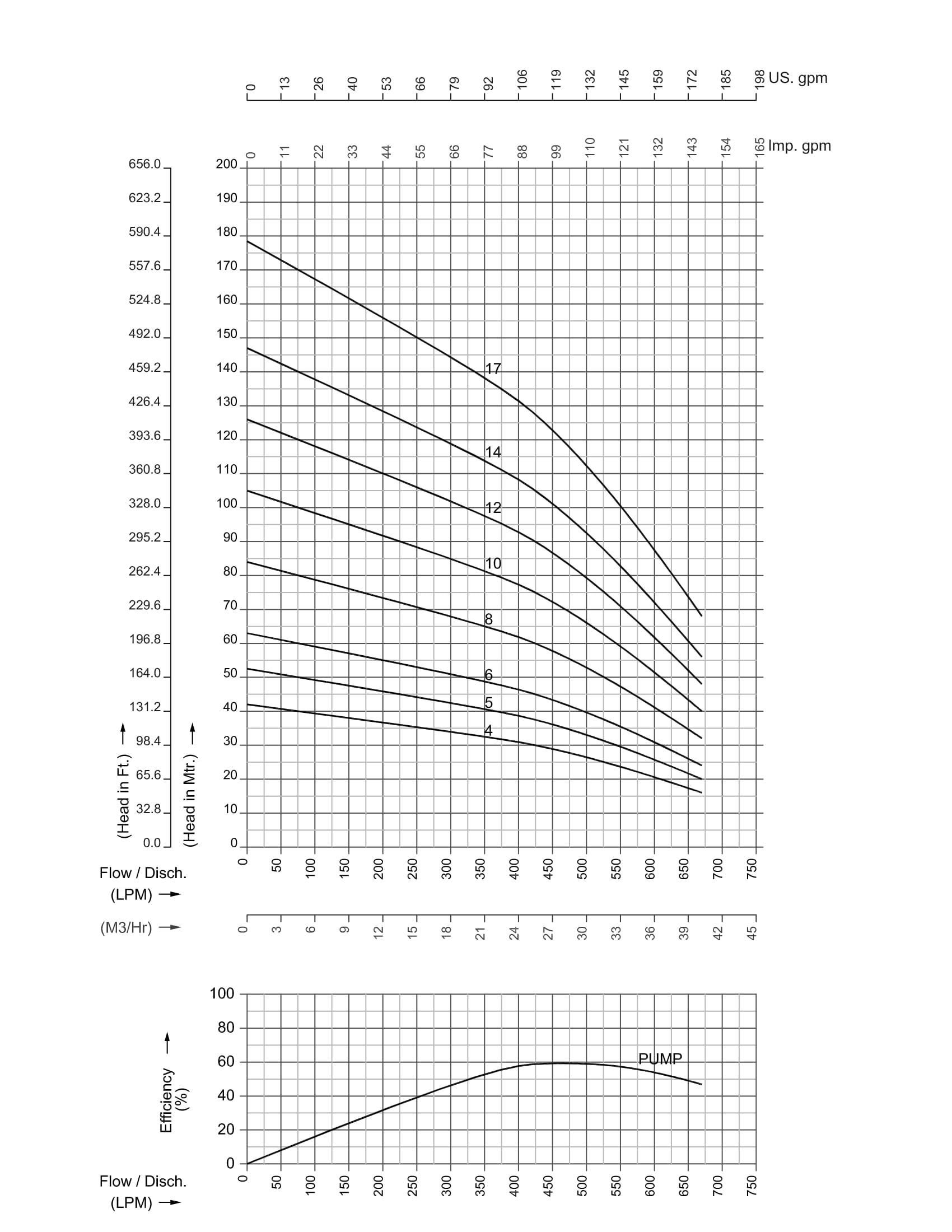

6DM026AA

MODEL	STAGE	REQUIRED		l/sec	0.0	5.8	7.3	9.5	11.2	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0.0	21.0	26.0	34.2	40.2
		HP	kW	l/min	0	350	435.0	570	670
6DM026AA-04	4	4.0	3.0	Head in Mtr.	42	33	30.0	23	16	2.5"
6DM026AA-05	5	5.0	3.7		53	41	37.5	29	20
6DM026AA-06	6	6.0	4.5		63	49	45.0	34	24
6DM026AA-08	8	7.5	5.5		84	66	57.0	46	32
6DM026AA-10	10	10.0	7.5		105	82	75.0	57	40
6DM026AA-12	12	12.5	9.3		126	98	90.0	68	48
6DM026AA-14	14	15.0	11.0		147	115	105.0	80	56
6DM026AA-17	17	17.5	13.0		179	139	128.0	97	68

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
6DM026AA-04	2.5"	650	2.13	146	0.48	26.20	57.75	0.78
6DM026AA-05		740	2.43	146	0.48	30.08	66.31	0.88
6DM026AA-06		830	2.72	146	0.48	33.96	74.87	0.97
6DM026AA-08		1010	3.31	146	0.48	41.73	91.99	1.16
6DM026AA-10		1190	3.90	146	0.48	49.49	109.11	1.35
6DM026AA-12		1370	4.49	146	0.48	57.26	126.23	1.54
6DM026AA-14		1550	5.09	146	0.48	65.02	143.35	1.72
6DM026AA-17		1820	5.97	146	0.48	76.67	169.03	2.00

MODEL	STAGE	REQUIRED		l/sec	0.0	7.3	8.5	9.8	11.7	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0.0	26.4	30.6	35.4	42.0
		HP	kW	l/min	0	440	510.0	590	700
6DM035AA-02	2	3.0	2.2	Head in Mtr.	24	19	17.0	15	11	3"
6DM035AA-03	3	5.0	3.7		36	28	25.5	22	17
6DM035AA-04	4	6.0	4.5		48	38	34.0	30	23
6DM035AA-05	5	7.5	5.5		60	47	42.5	37	29
6DM035AA-07	7	10.0	7.5		84	66	59.5	52	40
6DM035AA-09	9	12.5	9.3		108	85	76.5	67	51
6DM035AA-10	10	15.0	11.0		120	94	85.0	74	57
6DM035AA-12	12	17.5	13.0		144	113	102.0	89	68
6DM035AA-14	14	20.0	15.0		168	132	119.0	104	80
6DM035AA-16	16	25.0	18.0		192	150	136.0	118	91
6DM035AA-20	20	30.0	22.0		240	188	170.0	148	114

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
6DM054AA-02	3"	577	1.89	146	0.48	23.73	52.33	0.71
6DM054AA-03		682	2.24	146	0.48	28.68	63.23	0.82
6DM054AA-04		787	2.58	146	0.48	33.63	74.14	0.93
6DM054AA-05		892	2.93	146	0.48	38.57	85.04	1.04
6DM054AA-06		997	3.27	146	0.48	43.52	95.95	1.15
6DM054AA-07		1102	3.62	146	0.48	48.47	106.85	1.26
6DM054AA-09		1312	4.30	146	0.48	58.36	128.66	1.47
6DM054AA-10		1417	4.65	146	0.48	63.31	139.57	1.58
6DM054AA-12		1627	5.34	146	0.48	73.20	161.38	1.80
6DM054AA-15		1942	6.37	146	0.48	88.04	194.09	2.13

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
6DM066AA-02	3"	577	1.89	146	0.48	24.93	54.97	0.71
6DM066AA-03		682	2.24	146	0.48	30.48	67.20	0.82
6DM066AA-04		787	2.58	146	0.48	36.03	79.43	0.93
6DM066AA-05		892	2.93	146	0.48	41.57	91.66	1.04
6DM066AA-06		997	3.27	146	0.48	47.12	103.88	1.15
6DM066AA-07		1102	3.62	146	0.48	52.67	116.11	1.26
6DM066AA-08		1207	3.96	146	0.48	58.21	128.34	1.36
6DM066AA-10		1417	4.65	146	0.48	69.31	152.79	1.58
6DM066AA-12		1627	5.34	146	0.48	80.40	177.25	1.80

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
6DM075AA-02	4"	577	1.89	146	0.48	25.20	55.56	0.71
6DM075AA-03		682	2.24	146	0.48	30.70	67.68	0.82
6DM075AA-04		787	2.58	146	0.48	36.20	79.81	0.93
6DM075AA-05		892	2.93	146	0.48	41.70	91.93	1.04
6DM075AA-06		997	3.27	146	0.48	47.20	104.06	1.15
6DM075AA-07		1102	3.62	146	0.48	52.70	116.18	1.26
6DM075AA-08		1207	3.96	146	0.48	56.00	123.46	1.36
6DM075AA-10		1417	4.65	146	0.48	69.00	152.12	1.58

6W Pump CI MF – 50 Hz

Suitable Properties of liquid for PumpSet

Material of Construction

Model De-Code

PERFORMANCE TABLE AND GRAPHS :

Menu

Products

Certificates

Contact

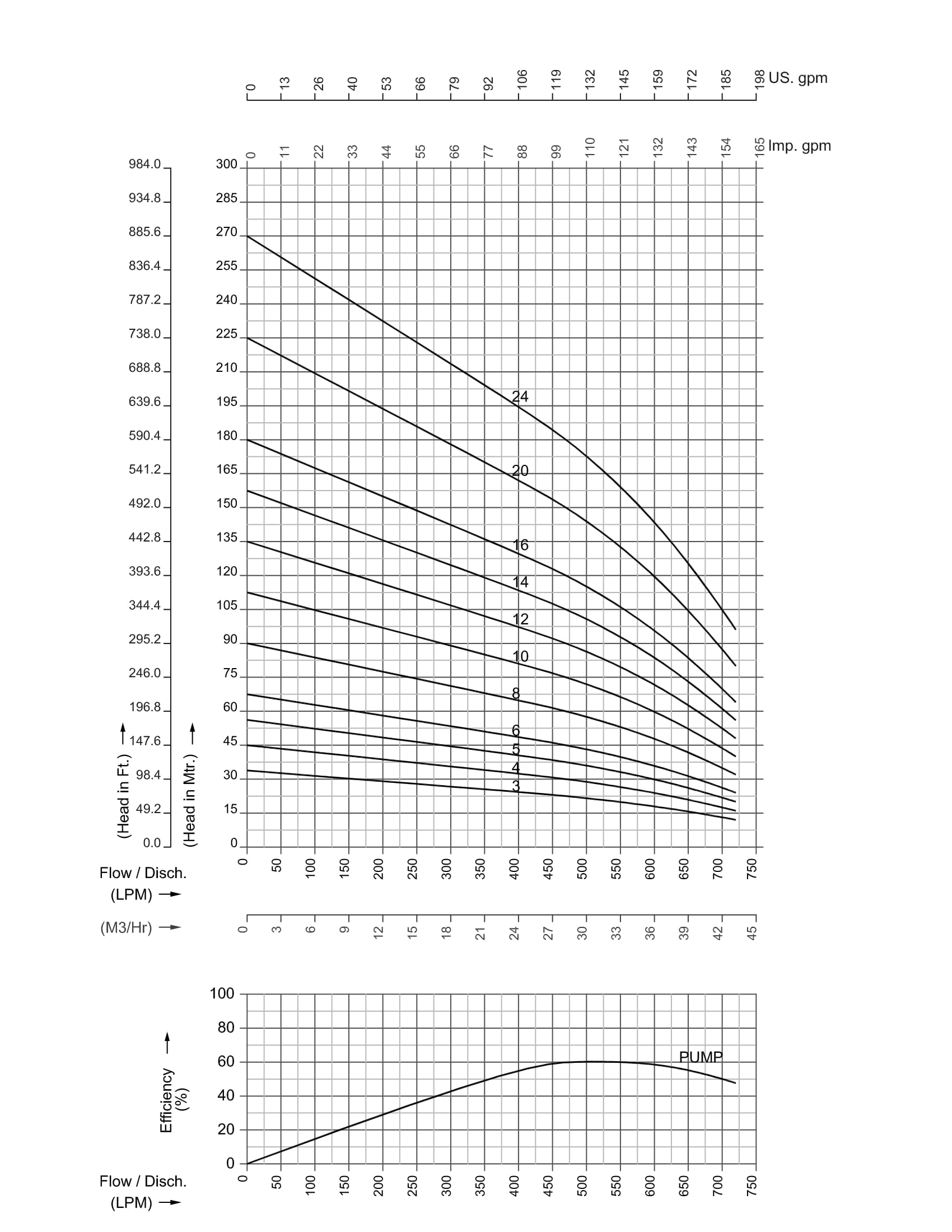

MODEL	STAGE	REQUIRED		l/sec	0.0	6.5	8.0	10.5	12.0	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0.0	23.4	29.0	37.8	43.2
		HP	kW	l/min	0	390	480.0	630	720
6DM030AA-03	3	4.0	3.0	Head in Mtr.	34	25	22.5	17	12	2.5"
6DM030AA-04	4	5.0	3.7		45	33	30.0	23	16
6DM030AA-05	5	6.0	4.5		56	41	37.5	29	20
6DM030AA-06	6	7.5	5.5		68	49	45.0	34	24
6DM030AA-08	8	10.0	7.5		90	66	60.0	46	32
6DM030AA-10	10	12.5	9.3		113	82	75.0	57	40
6DM030AA-12	12	15.0	11.0		135	98	90.0	68	48
6DM030AA-14	14	17.5	13.0		158	115	105.0	80	56
6DM030AA-16	16	20.0	15.0		180	131	120.0	91	64
6DM030AA-20	20	25.0	18.0		225	164	150.0	114	80
6DM030AA-24	24	30.0	22.0		270	197	180.0	137	96

MODEL	STAGE	REQUIRED		l/sec	0.0	15.0	17.0	20.0	23.0	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0.0	54.0	61.2	72.0	82.8
		HP	kW	l/min	0	900	1020.0	1200	1380
6DM066AA-02	2	5.0	3.7	Head in Mtr.	26	18	16.0	12	8	3"
6DM066AA-03	3	7.5	5.5		38	27	24.0	18	13
6DM066AA-04	4	10.0	7.5		51	36	32.0	24	17
6DM066AA-05	5	12.5	9.3		64	45	40.0	30	21
6DM066AA-06	6	15.0	11.0		77	54	48.0	36	25
6DM066AA-07	7	17.5	13.0		90	63	56.0	42	29
6DM066AA-08	8	20.0	15.0		102	72	64.0	48	34
6DM066AA-10	10	25.0	18.0		128	90	80.0	60	42
6DM066AA-12	12	30.0	22.0		154	108	96.0	72	50

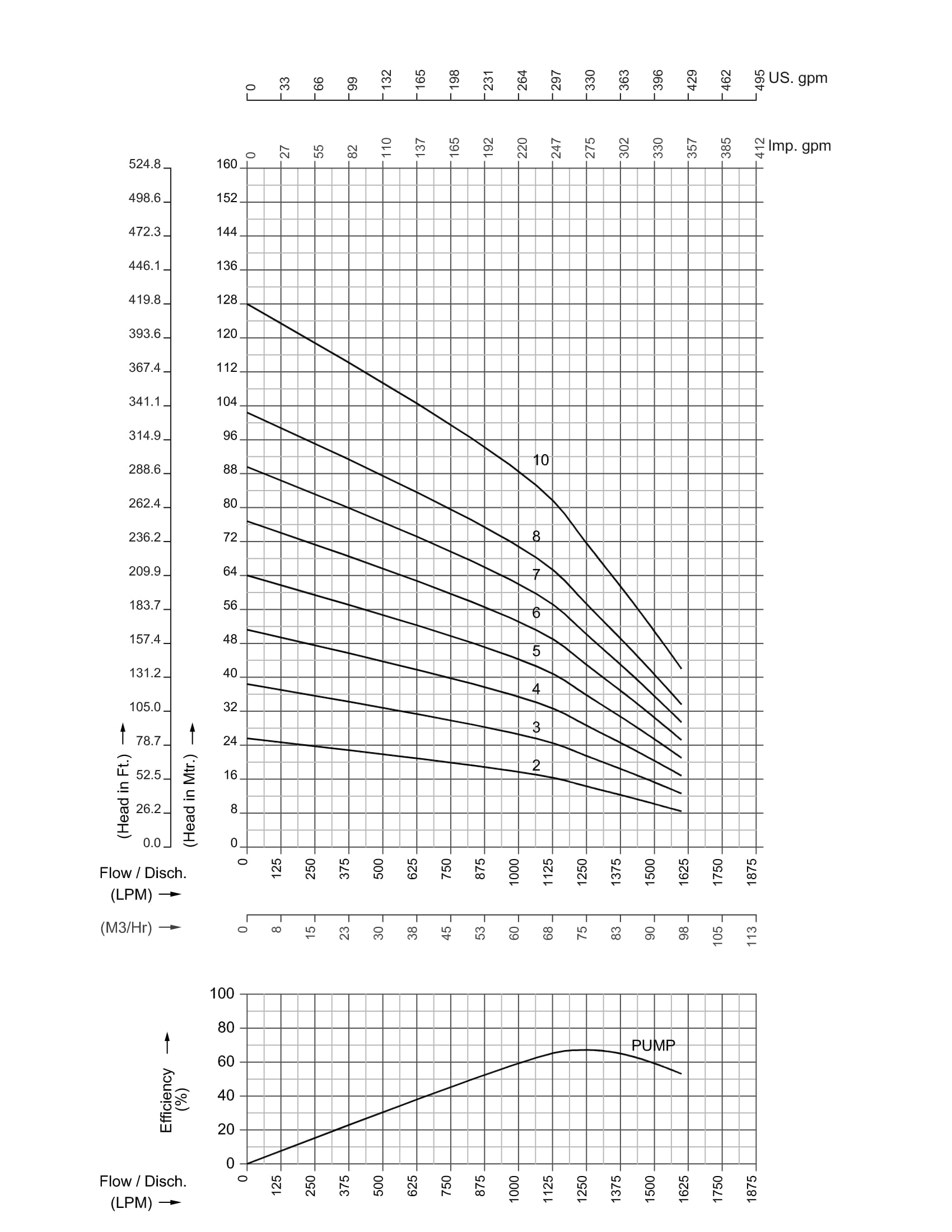

MODEL	STAGE	REQUIRED		l/sec	0.0	17.5	20.0	23.3	26.7	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0.0	63.0	72.0	84.0	96.0
		HP	kW	l/min	0	1050	1200.0	1400	1600
6DM075AA-02	2	6.0	4.5	Head in Mtr.	26	18	15.0	12	8	4"
6DM075AA-03	3	10.0	7.5		38	27	22.5	18	13
6DM075AA-04	4	12.5	9.3		51	36	30.0	24	17
6DM075AA-05	5	15.0	11.0		64	45	37.5	30	21
6DM075AA-06	6	17.5	13.0		77	54	45.0	36	25
6DM075AA-07	7	20.0	15.0		90	63	52.5	42	29
6DM075AA-08	8	25.0	18.0		102	72	60.0	48	34
6DM075AA-10	10	30.0	22.0		128	90	75.0	60	42
