6W Pump CI RF – 50 Hz

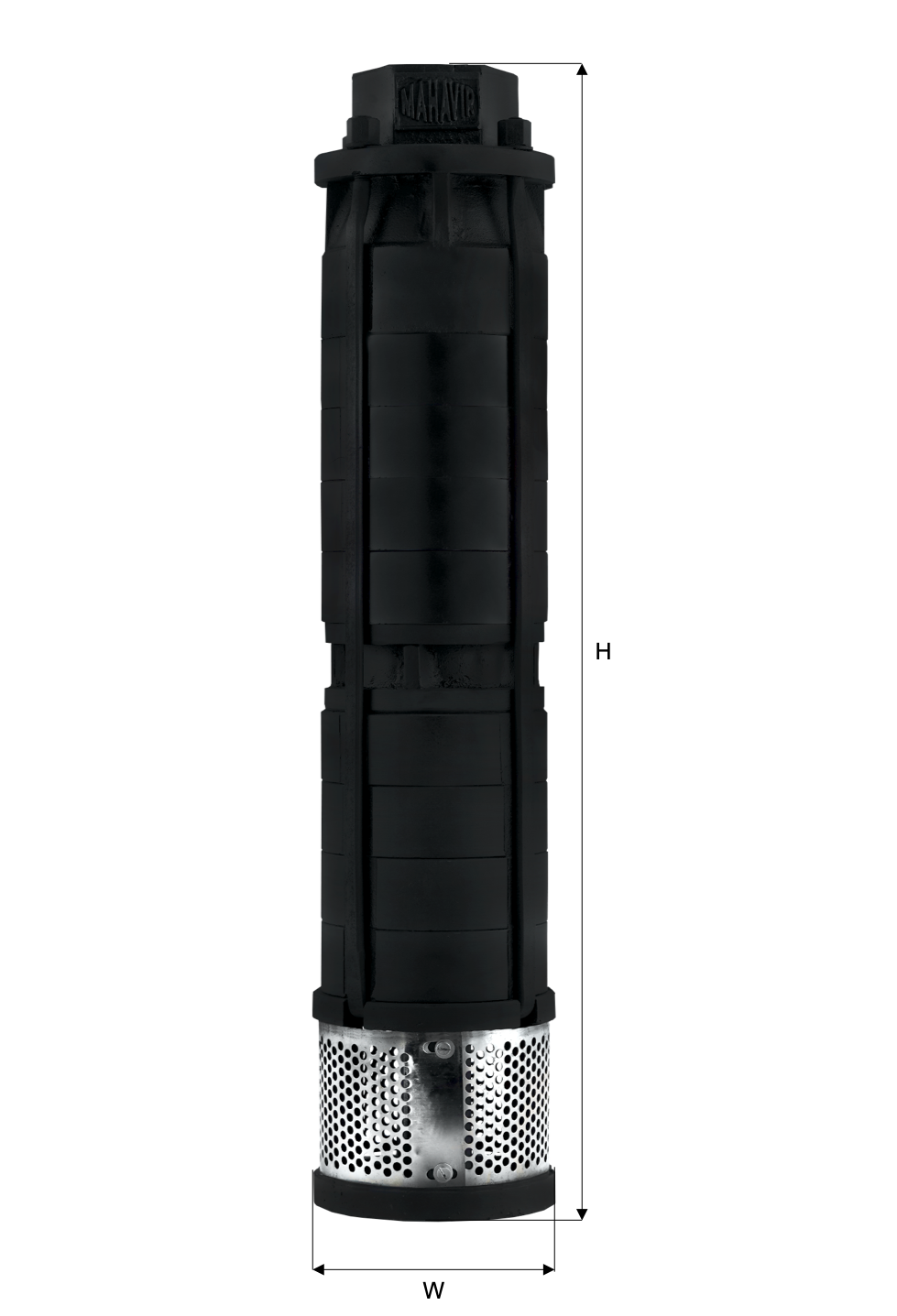

Mahavir’s 4W Submersible well pump set are suitable for wells of minimum 100mm or larger in internal diameter. Continuous rating in 5°C to 25°C water as per IEC 60034-1

This product is designed for best efficiency and can be best used for Solar Water pumping,Agriculture, Industrial water supply, Pressure boosting, Firefighting, Municipality and water works schemes

Pump set comes with a 2-Pole water cooled and lubricated rewindable type motor with insulation class B and a pump having semi-axial and radial hydrodynamic layout Thus, suitable for operations when completely immersed in water or suitable liquids.

Suitable Properties of liquid for PumpSet
Specific Gravity:	1.004 (max.)
Chloride content:	500 ppm (max.)
Turbidity:	50 ppm. Silica scale (max.)
Allowable Solids:	3000 ppm. (max.)
pH Value:	6.5 to 8.5
Max. Temperature:	33°C (max.)
Permissible Amt. of Sand:	25 grams/cu. meter (max.)
Hardness:	300 (max.)
Viscosity:	1750000 m2/sec (max.)

Material of Construction
Part Name	Material
Suction Casing	Grey Cast Iron or AISI 304 or AISI 316
Suction Bush	Leaded Tin Bronze
DOL Bush	Leaded Tin Bronze
Suction Plate	Grey Cast Iron or AISI 304 or AISI 316
Pump Shaft	Chromium Steel
Coupler	Chromium Steel
Impeller	Technopolymer or Chromium Steel
Diffuser Bowl	Grey Cast Iron or AISI 304 or AISI 316
Discharge Outlet	Grey Cast Iron or AISI 304 or AISI 316

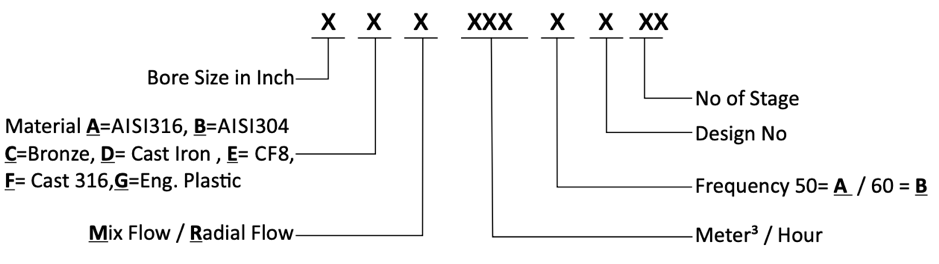

Model De-Code

PERFORMANCE TABLE AND GRAPHS :

6DR006AA

MODEL	STAGE	REQUIRED		l/sec	0.0	1.4	1.7	2.1	2.4	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0.0	5.1	6.0	7.5	8.7
		HP	kW	l/min	0.0	85.0	100.0	125.0	145.0
6DR006AA-10	10	3.0	2.2	Head in Mtr.	116	88	75.0	60	42	2"
6DR006AA-12	12	4.0	3.0		139	106	90.0	72	50
6DR006AA-14	14	5.0	3.7		162	123	105.0	84	59
6DR006AA-16	16	6.0	4.5		186	141	120.0	96	67
6DR006AA-20	20	6.0	4.5		232	176	150.0	120	84
6DR006AA-22	22	7.5	5.5		255	194	165.0	132	92
6DR006AA-25	25	7.5	5.5		290	220	187.5	150	105
6DR006AA-28	28	10.0	7.5		325	246	210.0	168	118
6DR006AA-30	30	10.0	7.5		348	264	225.0	180	126

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
6DR006AA-10	2"	733	2.40	146	0.48	34.44	75.93	0.87
6DR006AA-12		813	2.67	146	0.48	38.78	85.50	0.95
6DR006AA-14		893	2.93	146	0.48	43.12	95.07	1.04
6DR006AA-16		973	3.19	146	0.48	47.46	104.64	1.12
6DR006AA-20		1183	3.88	146	0.48	58.36	128.65	1.34
6DR006AA-22		1263	4.14	146	0.48	62.70	138.22	1.42
6DR006AA-25		1383	4.54	146	0.48	69.21	152.57	1.55
6DR006AA-28		1553	5.10	146	0.4	77.93	171.80	1.73
6DR006AA-30		1683	5.52	146	0.48	82.48	181.84	1.86

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
6DR015AA-04	2"	483	1.58	146	0.48	19.38	42.72	0.61
6DR015AA-05		533	1.75	146	0.48	21.59	47.60	0.66
6DR015AA-06		583	1.91	146	0.48	23.80	52.48	0.71
6DR015AA-07		633	2.08	146	0.48	26.02	57.36	0.77
6DR015AA-08		733	2.40	146	0.48	30.44	67.11	0.87
6DR015AA-10		833	2.73	146	0.48	34.87	76.87	0.97
6DR015AA-12		933	3.06	146	0.48	39.29	86.62	1.08
6DR015AA-16		1183	3.88	146	0.48	50.36	111.01	1.34
6DR015AA-18		1283	4.21	146	0.48	54.78	120.77	1.44
6DR015AA-20		1433	4.70	146	0.48	61.42	135.40	1.60
6DR015AA-22		1533	5.03	146	0.48	65.84	145.16	1.71
6DR015AA-25		1733	5.69	146	0.48	74.69	164.67	1.91
6DR015AA-30		2033	6.67	146	0.48	87.97	193.94	2.23

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
6DR018AA-03	2"	433	1.42	146	0.48	17.17	37.85	0.56
6DR018AA-04		483	1.58	146	0.48	19.38	42.72	0.61
6DR018AA-05		533	1.75	146	0.48	21.59	47.60	0.66
6DR018AA-06		583	1.91	146	0.48	23.80	52.48	0.71
6DR018AA-08		733	2.40	146	0.48	30.44	67.11	0.87
6DR018AA-10		833	2.73	146	0.48	34.87	76.87	0.97
6DR018AA-12		933	3.06	146	0.48	39.29	86.62	1.08
6DR018AA-15		1133	3.72	146	0.48	48.14	106.14	1.29
6DR018AA-18		1283	4.21	146	0.48	54.78	120.77	1.44
6DR018AA-20		1433	4.70	146	0.48	61.42	135.40	1.60
6DR018AA-25		1733	5.69	146	0.48	74.69	164.67	1.91
6DR018AA-30		2033	6.67	146	0.48	87.97	193.94	2.23

6W Pump CI RF – 50 Hz

Suitable Properties of liquid for PumpSet

Material of Construction

Model De-Code

PERFORMANCE TABLE AND GRAPHS :

Menu

Products

Certificates

Contact

MODEL	STAGE	REQUIRED		l/sec	0.0	1.8	2.2	2.8	3.3	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0.0	6.3	8.0	10.2	12.0
		HP	kW	l/min	0.0	105.0	133.0	170.0	200.0
6DR008AA-08	8	3.0	2.2	Head in Mtr.	93	70	60.4	48	34	2"
6DR008AA-10	10	4.0	3.0		116	88	80.0	60	42
6DR008AA-12	12	5.0	3.7		139	106	96.0	72	50
6DR008AA-13	13	6.0	4.5		151	114	104.0	78	55
6DR008AA-14	14	6.0	4.5		162	123	112.0	84	59
6DR008AA-15	15	7.5	5.5		174	132	120.0	90	63
6DR008AA-16	16	7.5	5.5		186	141	128.0	96	67
6DR008AA-18	18	7.5	5.5		209	158	144.0	108	76
6DR008AA-20	20	10.0	7.5		232	176	160.0	120	84
6DR008AA-22	22	10.0	7.5		255	194	176.0	132	92
6DR008AA-25	25	10.0	7.5		290	220	200.0	150	105
6DR008AA-30	30	12.5	9.3		348	264	240.0	180	126
6DR008AA-35	35	15.0	11.0		406	308	280.0	210	147

MODEL	STAGE	REQUIRED		l/sec	0.0	4.3	5.0	6.2	7.3	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0.0	15.3	18.0	22.2	26.4
		HP	kW	l/min	0.0	255.0	300.0	370.0	440.0
6DR018AA-03	3	3.0	2.2	Head in Mtr.	37	28	25.5	18	12	2"
6DR018AA-04	4	4.0	3.0		49	37	34.0	24	16
6DR018AA-05	5	5.0	3.7		61	47	42.5	30	20
6DR018AA-06	6	6.0	4.5		73	56	51.0	36	24
6DR018AA-08	8	7.5	5.5		98	74	68.0	48	32
6DR018AA-10	10	10.0	7.5		122	93	85.0	60	40
6DR018AA-12	12	12.5	9.3		146	112	102.0	72	48
6DR018AA-15	15	15.0	11.0		183	140	127.5	90	60
6DR018AA-18	18	17.5	13.0		220	167	153.0	108	72
6DR018AA-20	20	20.0	15.0		244	186	170.0	120	80
6DR018AA-25	25	25.0	18.0		305	233	212.5	150	100
6DR018AA-30	30	30.0	22.0		366	279	255.0	180	120
