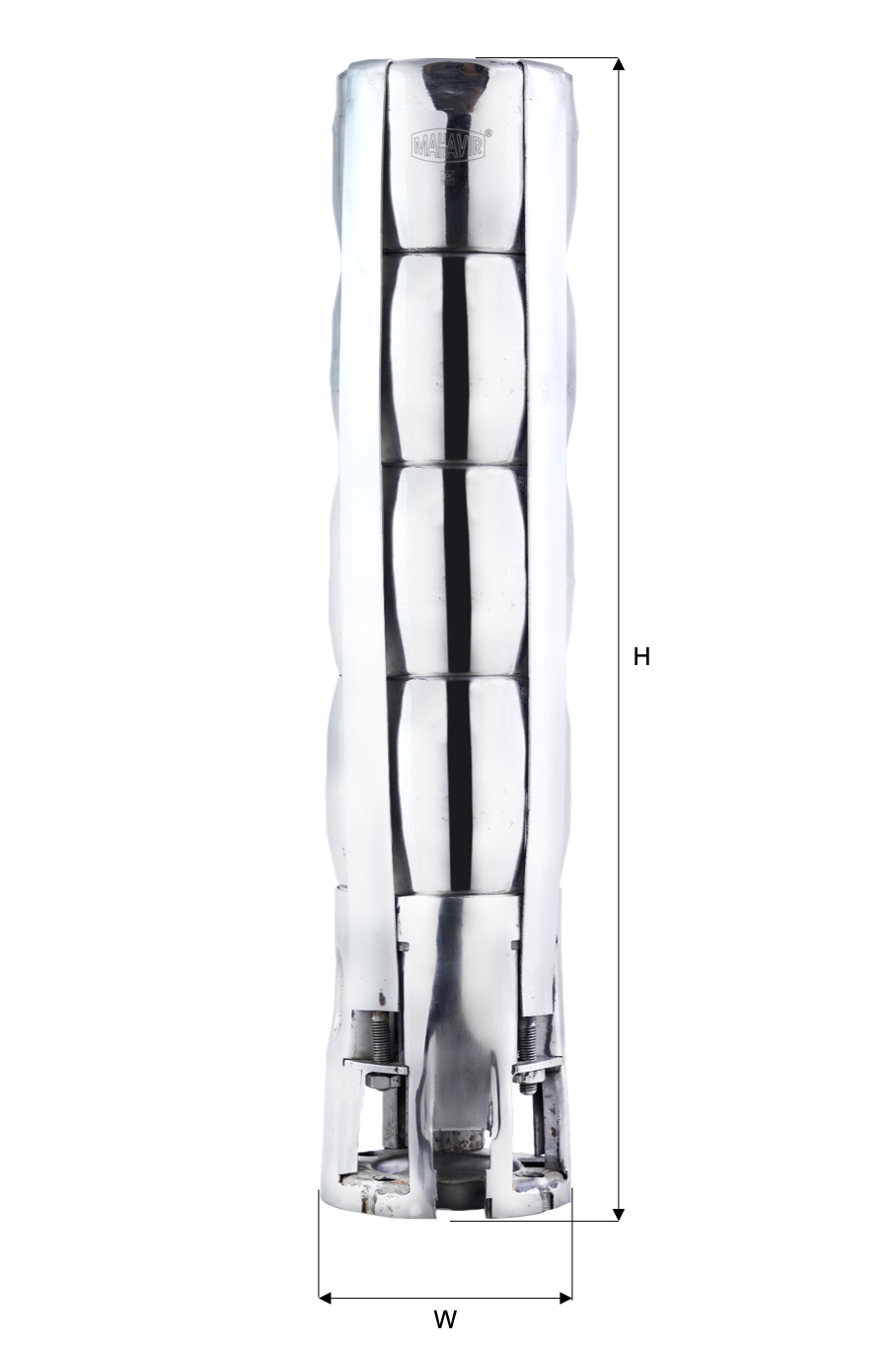

6W Pump SS MF – 50 Hz

Mahavir’s 4W Submersible well pump set are suitable for wells of minimum 100mm or larger in internal diameter. Continuous rating in 5°C to 25°C water as per IEC 60034-1

This product is designed for best efficiency and can be best used for Solar Water pumping,Agriculture, Industrial water supply, Pressure boosting, Firefighting, Municipality and water works schemes

Pump set comes with a 2-Pole water cooled and lubricated rewindable type motor with insulation class B and a pump having semi-axial and radial hydrodynamic layout Thus, suitable for operations when completely immersed in water or suitable liquids.

Suitable Properties of liquid for PumpSet
Specific Gravity:	1.004 (max.)
Chloride content:	500 ppm (max.)
Turbidity:	50 ppm. Silica scale (max.)
Allowable Solids:	3000 ppm. (max.)
pH Value:	6.5 to 8.5
Max. Temperature:	33°C (max.)
Permissible Amt. of Sand:	25 grams/cu. meter (max.)
Hardness:	300 (max.)
Viscosity:	1750000 m2/sec (max.)

Material of Construction
Part Name	Material
Suction Casing	AISI 304 or AISI 410
Suction Bush	Nitrile Rubber
DOL Bush	Nitrile Rubber
Suction Plate	AISI 304 or AISI 410
Pump Shaft	AISI 304 or AISI 410
Coupler	AISI 304 or AISI 410
Impeller	AISI 304 or AISI 410
Diffuser Bowl	AISI 304 or AISI 410
Discharge Outlet	AISI 304 or AISI 410

Model De-Code

PERFORMANCE TABLE AND GRAPHS :

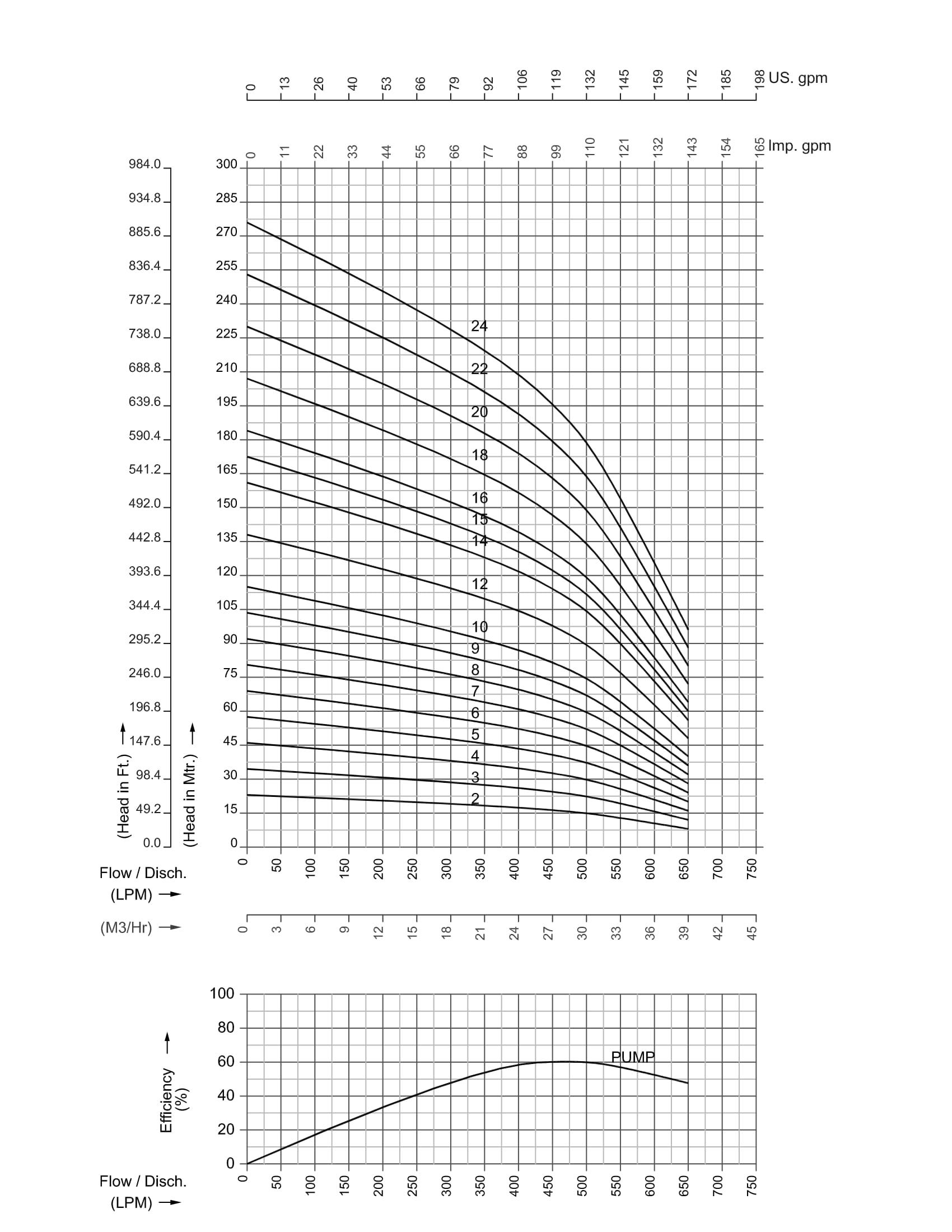

6BM030AA

MODEL	STAGE	REQUIRED		l/sec	0.0	5.5	7.8	8.8	10.8	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0.0	19.8	28.2	31.8	39.0
		HP	kW	l/min	0	330	470	530	650
6BM030AA-02	2	3.0	2.2	Head in Mtr.	23	19	16	14	8	3"
6BM030AA-03	3	4.0	3.0		35	29	24	21	12
6BM030AA-04	4	5.0	3.7		46	38	32	28	16
6BM030AA-05	5	6.0	4.5		58	48	40	35	20
6BM030AA-06	6	7.5	5.5		69	57	48	42	24
6BM030AA-07	7	10.0	7.5		81	67	56	49	28
6BM030AA-08	8	10.0	7.5		92	76	64	56	32
6BM030AA-09	9	12.5	9.3		104	86	72	63	36
6BM030AA-10	10	12.5	9.3		115	95	80	70	40
6BM030AA-12	12	15.0	11.0		138	114	96	84	48
6BM030AA-14	14	17.5	13.0		161	133	112	98	56
6BM030AA-15	15	17.5	13.0		173	143	120	105	60
6BM030AA-16	16	20.0	15.0		184	152	128	112	64
6BM030AA-18	18	25.0	18.5		207	171	144	126	72
6BM030AA-20	20	25.0	18.5		230	190	160	140	80
6BM030AA-22	22	30.0	22.0		253	209	176	154	88
6BM030AA-24	24	30.0	22.0		276	228	192	168	96

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
6BM030AA-02	2"	462	1.52	146	0.48	14.00	30.86	0.59
6BM030AA-03		558	1.83	146	0.48	16.15	35.61	0.69
6BM030AA-04		654	2.15	146	0.48	18.31	40.37	0.79
6BM030AA-05		750	2.46	146	0.48	20.47	45.13	0.89
6BM030AA-06		846	2.78	146	0.48	22.63	49.89	0.99
6BM030AA-07		942	3.09	146	0.48	24.79	54.65	1.09
6BM030AA-08		1038	3.41	146	0.48	26.95	59.40	1.19
6BM030AA-09		1134	3.72	146	0.48	29.10	64.16	1.29
6BM030AA-10		1230	4.04	146	0.48	31.26	68.92	1.39
6BM030AA-12		1422	4.67	146	0.48	35.58	78.44	1.59
6BM030AA-14		1614	5.30	146	0.48	39.89	87.95	1.79
6BM030AA-15		1710	5.61	146	0.48	42.05	92.71	1.89
6BM030AA-16		1806	5.93	146	0.48	44.21	97.47	1.99
6BM030AA-18		1998	6.56	146	0.48	48.53	106.98	2.19
6BM030AA-20		2190	7.19	146	0.48	52.84	116.50	2.39
6BM030AA-22		2382	7.81	146	0.48	57.16	126.02	2.59
6BM030AA-24		2574	8.44	146	0.48	61.48	135.53	2.79

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
6BM046AA-02	2"	496	1.63	146	0.48	14.34	31.62	0.62
6BM046AA-03		609	2.00	146	0.48	16.67	36.75	0.74
6BM046AA-04		722	2.37	146	0.48	19.00	41.89	0.86
6BM046AA-05		835	2.74	146	0.48	21.33	47.03	0.98
6BM046AA-06		948	3.11	146	0.48	23.66	52.17	1.09
6BM046AA-07		1061	3.48	146	0.48	25.99	57.30	1.21
6BM046AA-08		1174	3.85	146	0.48	28.32	62.44	1.33
6BM046AA-09		1287	4.22	146	0.48	30.65	67.58	1.45
6BM046AA-10		1400	4.59	146	0.48	32.98	72.72	1.57
6BM046AA-12		1626	5.33	146	0.48	37.65	82.99	1.80
6BM046AA-14		1852	6.08	146	0.48	42.31	93.27	2.04

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
6BM060AA-02	2"	496	1.63	146	0.48	16.34	36.02	0.62
6BM060AA-03		609	2.00	146	0.48	18.67	41.16	0.74
6BM060AA-04		722	2.37	146	0.48	21.00	46.30	0.86
6BM060AA-05		835	2.74	146	0.48	23.33	51.44	0.98
6BM060AA-06		948	3.11	146	0.48	25.66	56.58	1.09
6BM060AA-07		1061	3.48	146	0.48	27.99	61.71	1.21
6BM060AA-08		1174	3.85	146	0.48	30.32	66.85	1.33
6BM060AA-09
1287		4.22	146	0.48	32.65	71.99	1.45
6BM060AA-12	1626	5.33	146	0.48	39.65	87.40	1.80

6W Pump SS MF – 50 Hz

Suitable Properties of liquid for PumpSet

Material of Construction

Model De-Code

PERFORMANCE TABLE AND GRAPHS :

Menu

Products

Certificates

Contact

MODEL	STAGE	REQUIRED		l/sec	0.0	11.2	12.5	13.9	15.3	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0.0	40.2	45.0	50.1	55.2
		HP	kW	l/min	0	670	750	835	920
6BM046AA-02	2	4.0	3.0	Head in Mtr.	26	19	16	15	13	3” OR 4
6BM046AA-03	3	6.0	4.5		39	29	26	23	20
6BM046AA-04	4	7.5	5.5		52	38	35	31	26
6BM046AA-05	5	10.0	7.5		65	48	44	39	33
6BM046AA-06	6	12.5	9.3		78	57	52	46	39
6BM046AA-07	7	15.0	11.0		91	67	61	54	46
6BM046AA-08	8	17.5	13.0		104	76	70	62	52
6BM046AA-09	9	20.0	15.0		117	86	78	69	59
6BM046AA-10	10	20.0	15.0		130	95	87	77	65
6BM046AA-12	12	25.0	18.5		156	114	104	92	78
6BM046AA-14	14	30.0	22.0		182	133	122	108	91

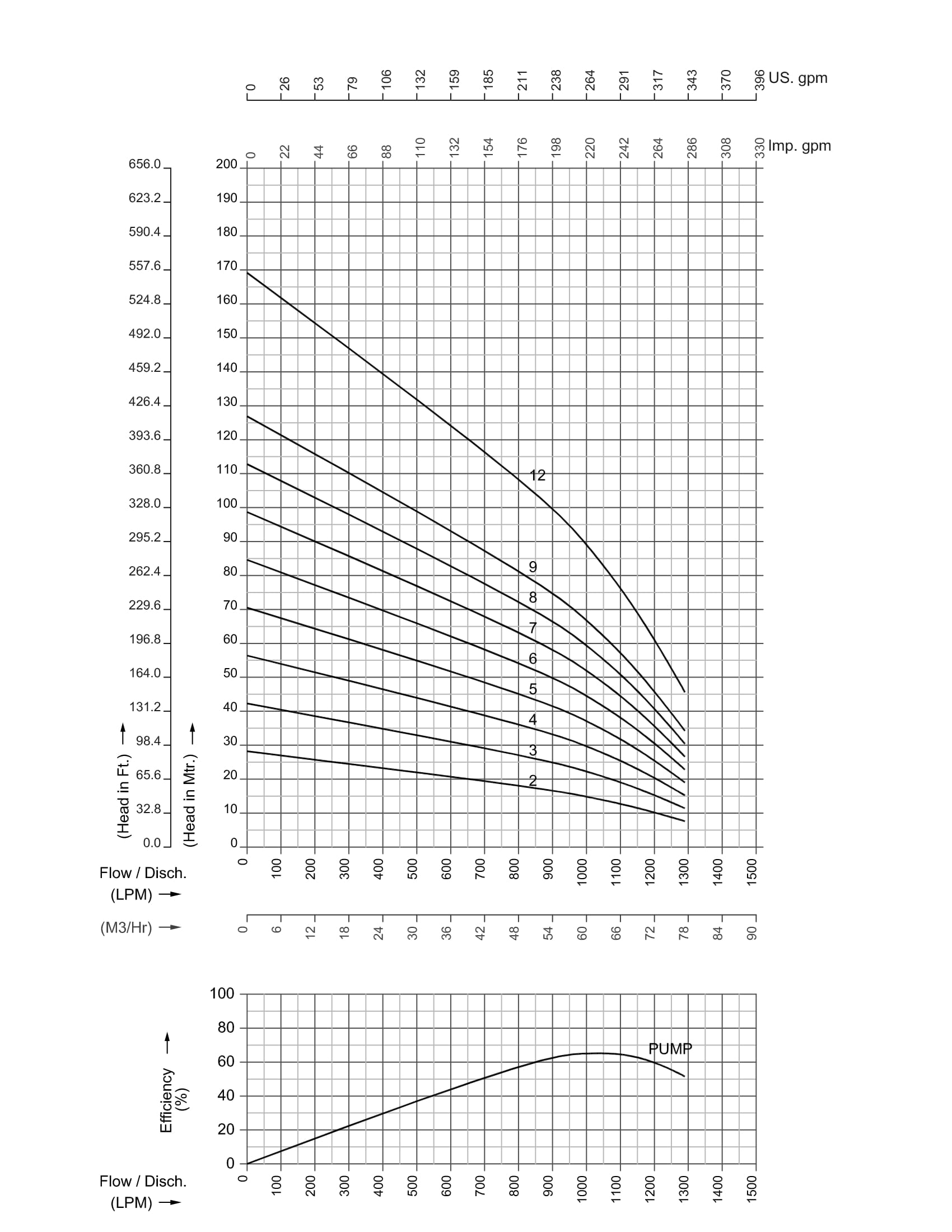

MODEL	STAGE	REQUIRED		l/sec	0.0	13.8	16.7	19.5	21.5	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0.0	49.8	60.0	70.2	77.4
		HP	kW	l/min	0	830	1000	1170	1290
6BM060AA-02	2	6.0	4.5	Head in Mtr.	28	17	14	10	7	4"
6BM060AA-03	3	7.5	5.5		42	26	22	16	11
6BM060AA-04	4	10.0	7.5		56	35	30	22	14
6BM060AA-05	5	12.5	9.3		71	44	38	27	18
6BM060AA-06	6	15.0	11.0		85	54	45	34	23
6BM060AA-07	7	17.5	13.0		99	63	53	39	27
6BM060AA-08	8	20.0	15.0		113	72	60	45	30
6BM060AA-09	9	25.0	18.5		127	81	68	50	34
6BM060AA-12	12	30.0	22.0		169	108	90	67	46

Product Details

6W Pump SS MF – 50 Hz

Suitable Properties of liquid for PumpSet

Material of Construction

Model De-Code

PERFORMANCE TABLE AND GRAPHS :

6BM030AA

6BM046AA

6DR010AA
