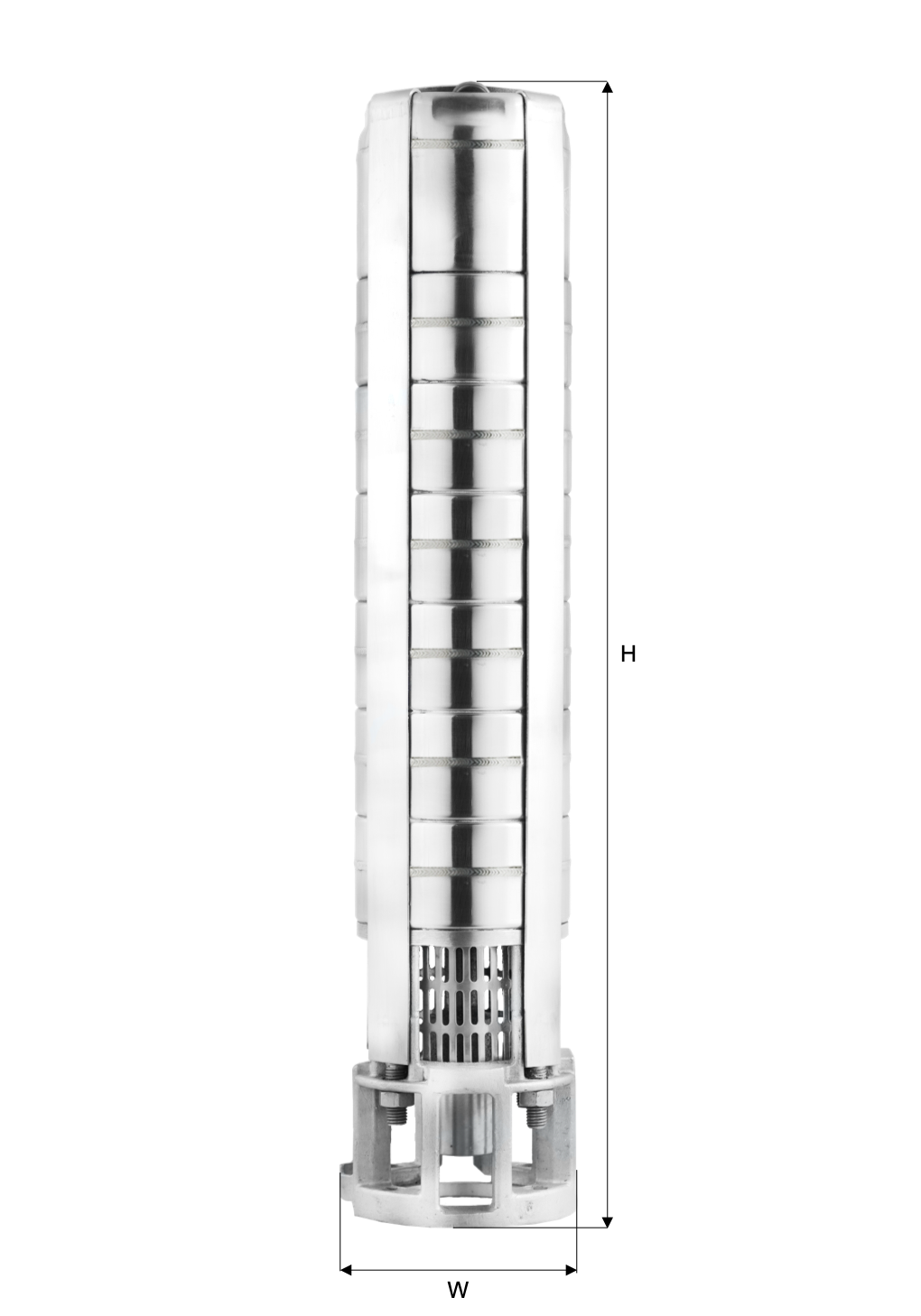

Suitable Properties of liquid for PumpSet |
||
---|---|---|
Specific Gravity: | 1.004 (max.) | |
Chloride content: | 500 ppm (max.) | |
Turbidity: | 50 ppm. Silica scale (max.) | |
Allowable Solids: | 3000 ppm. (max.) | |
pH Value: | 6.5 to 8.5 | |
Max. Temperature: | 33°C (max.) | |
Permissible Amt. of Sand: | 25 grams/cu. meter (max.) | |
Hardness: | 300 (max.) | |
Viscosity: | 1750000 m2/sec (max.) |
Material of Construction |

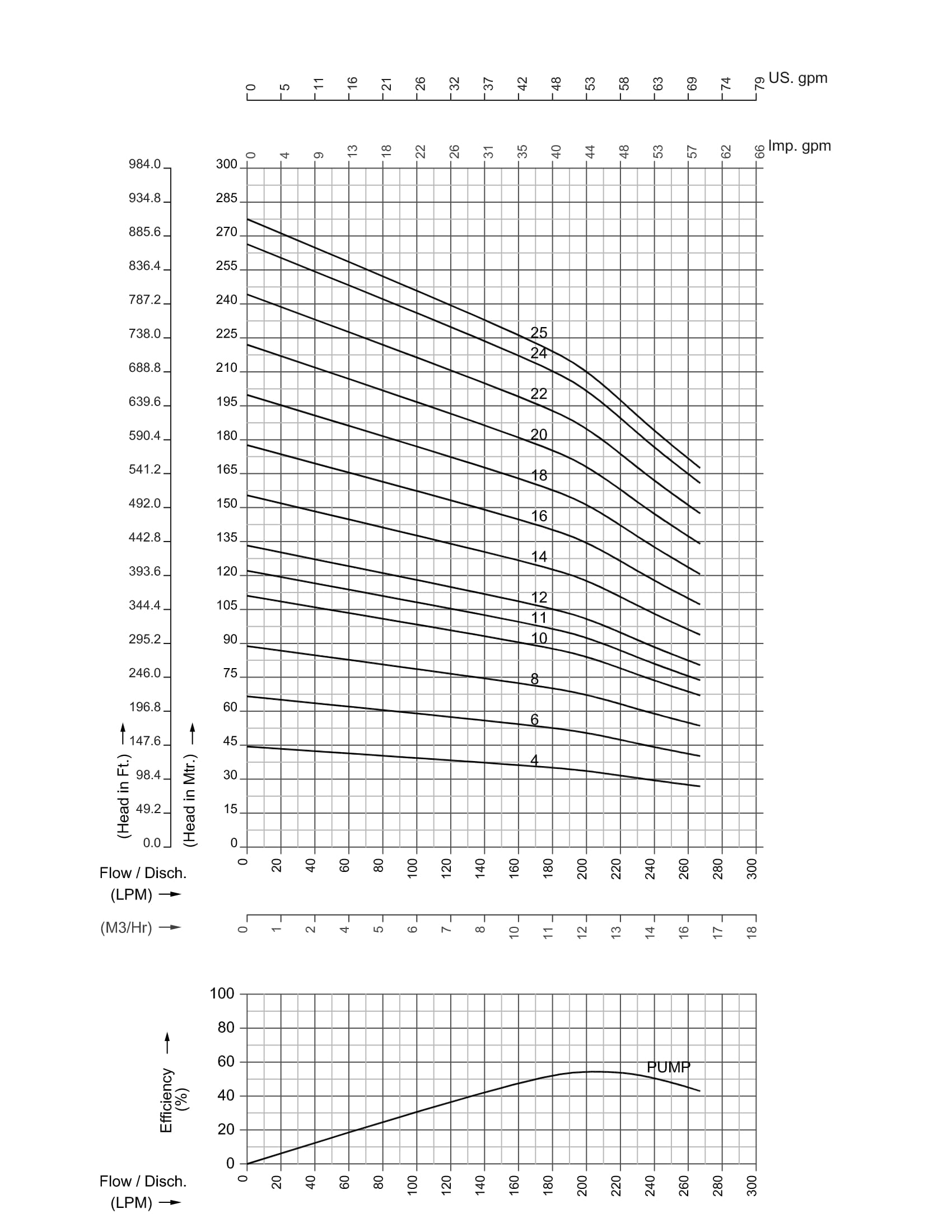

||
---|---|---|
Part Name | Material | |
Suction Casing | AISI 304 or AISI 410 | |
Suction Bush | Nitrile Rubber | |
DOL Bush | Nitrile Rubber | |
Suction Plate | AISI 304 or AISI 410 | |
Pump Shaft | AISI 304 or AISI 410 | |
Coupler | AISI 304 or AISI 410 | |
Impeller | AISI 304 or AISI 410 | Diffuser Bowl | AISI 304 or AISI 410 |
Discharge Outlet | AISI 304 or AISI 410 |
MODEL | STAGE | REQUIRED | l/sec | 0.0 | 2.2 | 2.8 | 3.3 | 3.9 | G Ø Outlet (Inch.) | |
---|---|---|---|---|---|---|---|---|---|---|
m³/h | 0.0 | 8.0 | 10.0 | 12.0 | 14.0 | |||||
HP | kW | l/min | 0 | 133 | 167.0 | 200 | 233 | |||

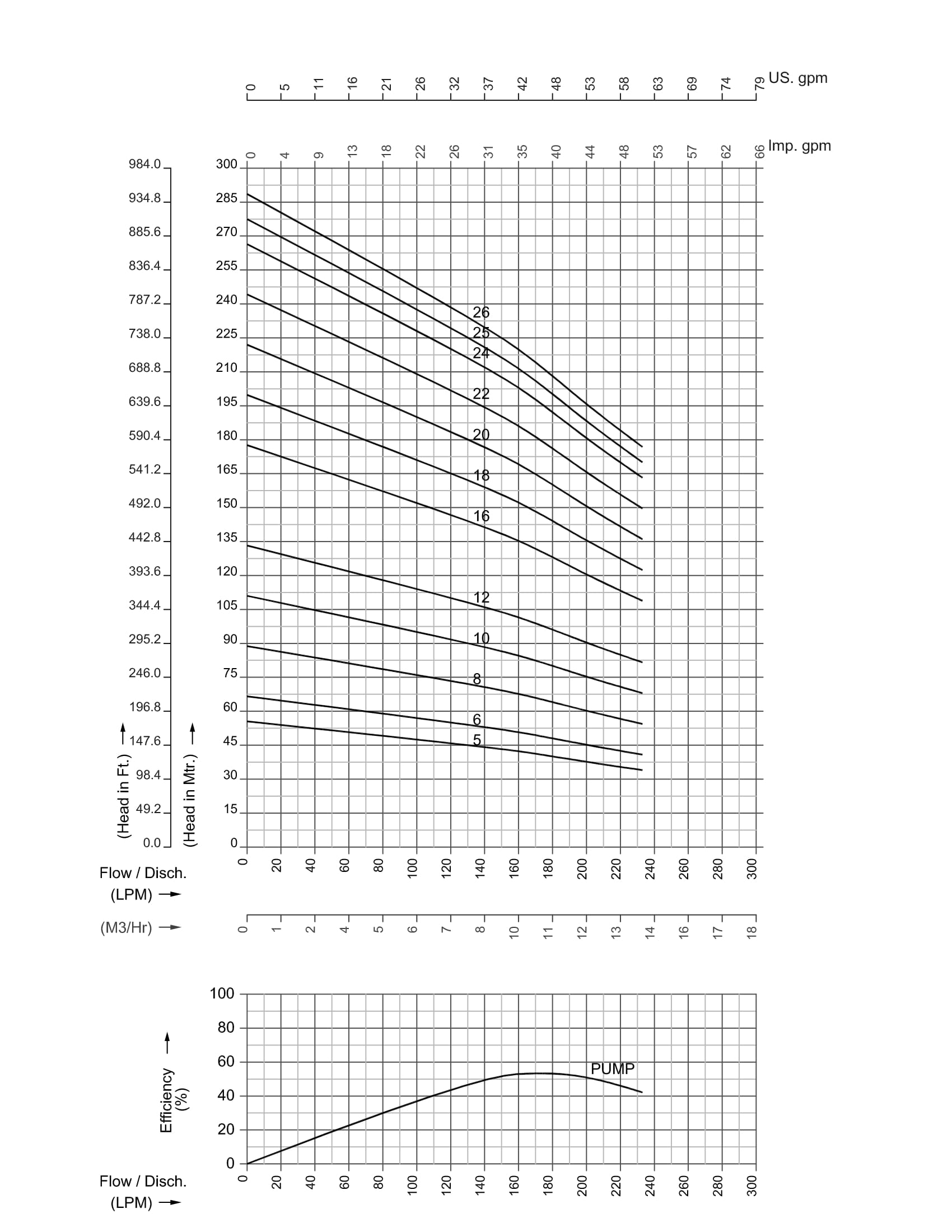

6BR009AA-03 | 5 | 3.0 | 2.2 | Head in Mtr. | 56 | 45 | 42 | 38 | 34 | 2" |
6BR009AA-06 | 6 | 4.0 | 3.0 | 67 | 54 | 50 | 45 | 41 | ||
6BR009AA-08 | 8 | 5.0 | 3.7 | 89 | 72 | 67 | 60 | 54 | ||
6BR009AA-10 | 10 | 6.0 | 4.5 | 111 | 90 | 84 | 75 | 68 | ||
6BR009AA-12 | 12 | 7.5 | 5.5 | 133 | 108 | 100 | 90 | 82 | ||
6BR009AA-16 | 16 | 10.0 | 7.5 | 178 | 144 | 134 | 120 | 109 | ||
6BR009AA-18 | 18 | 10.0 | 7.5 | 200 | 162 | 150 | 135 | 122 | ||
6BR009AA-20 | 20 | 12.5 | 9.3 | 222 | 180 | 167 | 150 | 136 | ||
6BR009AA-22 | 22 | 12.5 | 9.3 | 244 | 198 | 184 | 165 | 150 | ||
6BR009AA-24 | 24 | 15.0 | 11.0 | 266 | 216 | 200 | 180 | 163 | ||
6BR009AA-25 | 25 | 15.0 | 11.0 | 278 | 225 | 209 | 188 | 170 | ||
6BR009AA-26 | 26 | 15.0 | 11.0 | 289 | 234 | 217 | 195 | 177 |
MODEL | G Ø Outlet (Inch.) | Height (H) | Width(W) | Weight | Volume | |||
---|---|---|---|---|---|---|---|---|
mm | ft. | mm | ft. | Kg | lb | cu.ft | ||
6BR009AA-03 | 2" | 580 | 1.90 | 146 | 0.48 | 16.00 | 35.27 | 0.71 |
6BR009AA-06 | 640 | 2.10 | 146 | 0.48 | 17.25 | 38.04 | 0.77 | |
6BR009AA-08 | 760 | 2.49 | 146 | 0.48 | 19.76 | 43.57 | 0.90 | |
6BR009AA-10 | 880 | 2.89 | 146 | 0.48 | 22.27 | 49.10 | 1.02 | |
6BR009AA-12 | 1000 | 3.28 | 146 | 0.48 | 24.78 | 54.64 | 1.15 | |
6BR009AA-16 | 1240 | 4.07 | 146 | 0.48 | 29.80 | 65.71 | 1.40 | |
6BR009AA-18 | 1360 | 4.46 | 146 | 0.48 | 32.31 | 71.24 | 1.52 | |
6BR009AA-20 | 1480 | 4.86 | 146 | 0.48 | 34.82 | 76.77 | 1.65 | |
6BR009AA-22 | 1600 | 5.25 | 146 | 0.48 | 37.33 | 82.31 | 1.78 | |
6BR009AA-24 | 1720 | 5.64 | 146 | 0.48 | 39.84 | 87.84 | 1.90 | |
6BR009AA-25 | 1780 | 5.84 | 146 | 0.48 | 41.10 | 90.61 | 1.96 | |
6BR009AA-26 | 1840 | 6.04 | 146 | 0.48 | 42.36 | 93.38 | 2.03 |
