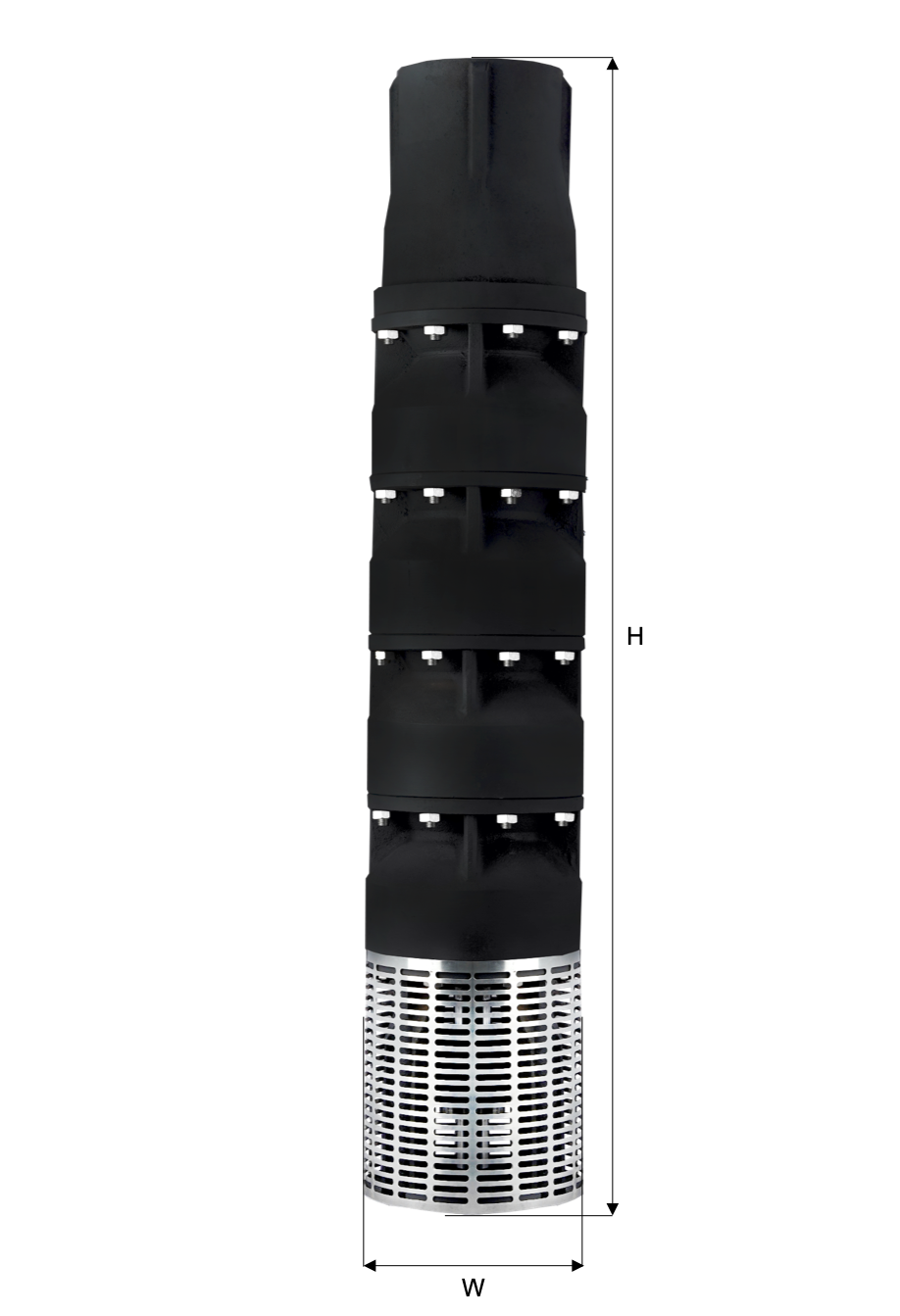

8W Pump CI MF – 50 Hz

Mahavir’s 8W Submersible well pump set are suitable for wells of minimum 200mm or larger in internal diameter. Continuous rating in 5°C to 25°C water as per IEC 60034-1 (Temperature withstanding capacity upto 45°C can be manufactured upon request)

This product is designed for best efficiency and can be best used for Solar Water pumping, Agriculture, Industrial water supply, Pressure boosting, Firefighting, Municipality and water works schemes

Pump set comes with a 2-Pole water cooled and lubricated rewindable type motor with insulation class B and a pump having semi-axial hydrodynamic layout Thus, suitable for operations when completely immersed in water or suitable liquids.

Suitable Properties of liquid for PumpSet
Specific Gravity:	1.004 (max.)
Chloride content:	500 ppm (max.)
Turbidity:	50 ppm. Silica scale (max.)
Allowable Solids:	3000 ppm. (max.)
pH Value:	6.5 to 8.5
Max. Temperature:	33°C (max.)
Permissible Amt. of Sand:	25 grams/cu. meter (max.)
Hardness:	300 (max.)
Viscosity:	1750000 m2/sec (max.)

Material of Construction
Part Name	Material
Suction Casing	Grey Cast Iron or AISI 304 or AISI 316
Suction Bush	Leaded Tin Bronze
DOL Bush	Leaded Tin Bronze
Suction Plate	Grey Cast Iron or AISI 304 or AISI 316
Pump Shaft	Chromium Steel
Coupler	Chromium Steel
Impeller	Technopolymer or Chromium Steel
Diffuser Bowl	Grey Cast Iron or AISI 304 or AISI 316
Discharge Outlet	Grey Cast Iron or AISI 304 or AISI 316

Model De-Code

PERFORMANCE TABLE AND GRAPHS :

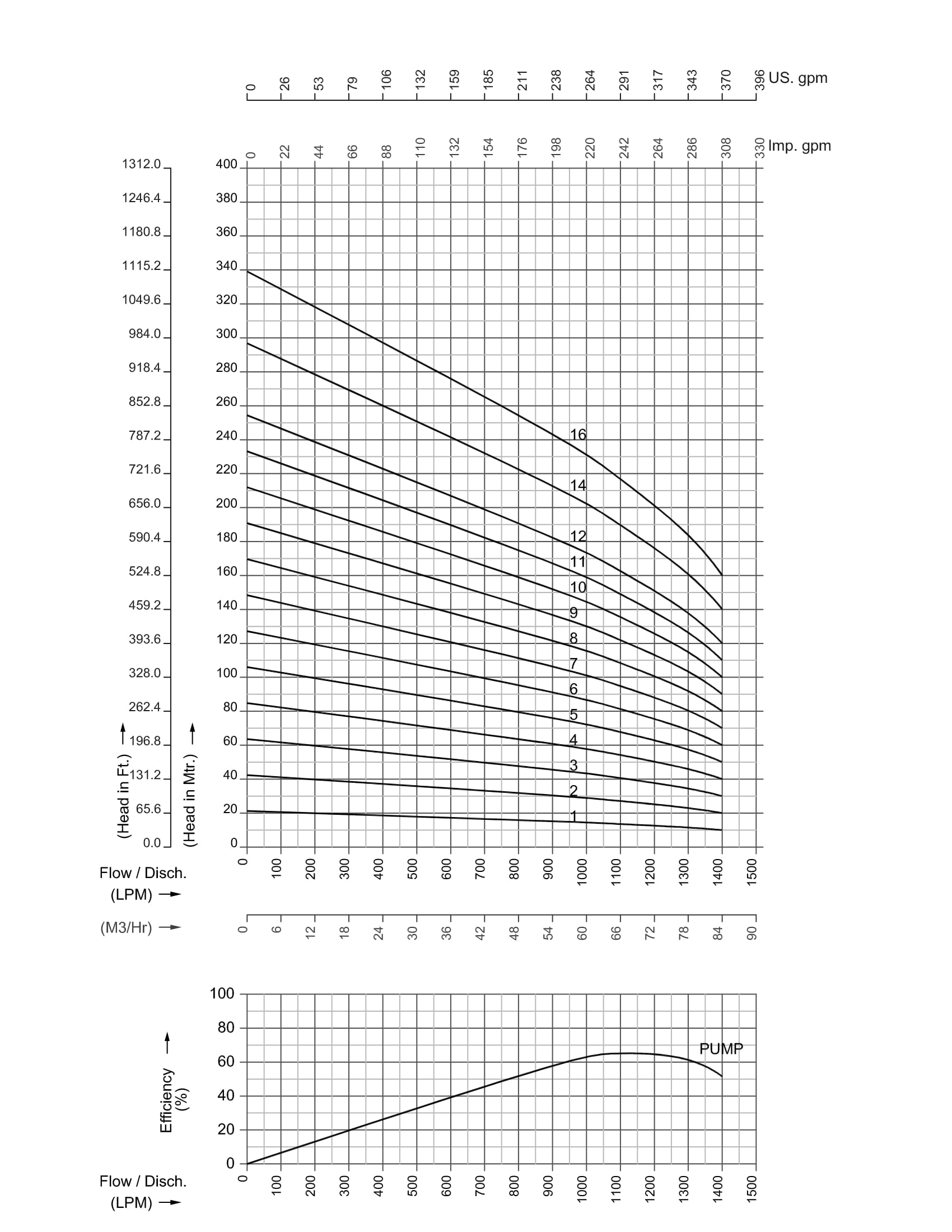

8DM060AA

MODEL	STAGE	REQUIRED		l/sec	0.0	15.8	17.5	22.0	23.3	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0	57	63	79.2	84
		HP	kW	l/min	0	950	1050	1320	1400
8DM060AA-04	4	15.0	11	Head in Mtr.	85	60	56	46	40	4"
8DM060AA-05	5	20.0	15		106	75	70	58	50
8DM060AA-06	6	25.0	18		127	90	84	69	60
8DM060AA-07	7	30.0	22		148	105	98	81	70
8DM060AA-08	8	30.0	22		170	120	112	92	80
8DM060AA-09	9	40.0	30		191	135	126	104	90
8DM060AA-10	10	40.0	30		212	150	140	115	100
8DM060AA-11	11	50.0	37		233	165	154	127	110
8DM060AA-12	12	50.0	37		254	180	168	138	120
8DM060AA-14	14	60.0	45		297	210	196	161	140
8DM060AA-16	16	75.0	55		339	240	224	184	160

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
8DM060AA-04	4"	795	2.61	196	0.64	50.03	110.30	1.51
8DM060AA-05		915	3.00	196	0.64	58.64	129.28	1.72
8DM060AA-06		1035	3.40	196	0.64	67.25	148.26	1.93
8DM060AA-07		1155	3.79	196	0.64	75.86	167.24	2.14
8DM060AA-08		1275	4.18	196	0.64	84.47	186.22	2.35
8DM060AA-09		1395	4.58	196	0.64	93.08	205.20	2.56
8DM060AA-10		1515	4.97	196	0.64	101.69	224.18	2.77
8DM060AA-11		1635	5.36	196	0.64	110.29	243.16	2.98
8DM060AA-12		1755	5.76	196	0.64	118.90	262.13	3.19
8DM060AA-14		1995	6.55	196	0.64	136.12	300.09	3.61
8DM060AA-16		2235	7.33	196	0.64	153.34	338.05	4.03

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
8DM096AA-02	4"	665	2.18	196	0.64	38.67	85.24	1.29
8DM096AA-03		795	2.61	196	0.64	49.93	110.08	1.51
8DM096AA-04		925	3.03	196	0.64	61.20	134.92	1.73
8DM096AA-05		1055	3.46	196	0.64	72.47	159.77	1.96
8DM096AA-06		1185	3.89	196	0.64	83.74	184.61	2.19
8DM096AA-07		1315	4.31	196	0.64	95.00	209.45	2.42
8DM096AA-08		1445	4.74	196	0.64	106.27	234.29	2.65
8DM096AA-09		1575	5.17	196	0.64	117.54	259.13	2.87
8DM096AA-10		1705	5.59	196	0.64	128.81	283.97	3.10
8DM096AA-11		1835	6.02	196	0.64	140.07	308.81	3.33

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
8DM108AA-02	4" or 5"	665	2.18	196	0.64	38.67	85.24	1.29
8DM108AA-03		795	2.61	196	0.64	49.93	110.08	1.51
8DM108AA-04		925	3.03	196	0.64	61.20	134.92	1.73
8DM108AA-05		1055	3.46	196	0.64	72.47	159.77	1.96
8DM108AA-06		1185	3.89	196	0.64	83.74	184.61	2.19
8DM108AA-07		1315	4.31	196	0.64	95.00	209.45	2.42
8DM108AA-08		1445	4.74	196	0.64	106.27	234.29	2.65
8DM108AA-09		1575	5.17	196	0.64	117.54	259.13	2.87

MODEL	G Ø Outlet (Inch.)	Height (H)		Width(W)		Weight		Volume
MODEL	G Ø Outlet (Inch.)	mm	ft.	mm	ft.	Kg	lb	cu.ft
8DM120AA-01	5" or 6"	545	1.79	196	0.64	31.96	70.45	1.07
8DM120AA-02		685	2.25	196	0.64	45.78	100.94	1.31
8DM120AA-03		825	2.71	196	0.64	59.61	131.42	1.56
8DM120AA-04		965	3.17	196	0.64	73.44	161.90	1.80
8DM120AA-05		1105	3.63	196	0.64	87.26	192.38	2.05
8DM120AA-06		1245	4.08	196	0.64	101.09	222.87	2.30
8DM120AA-07		1385	4.54	196	0.64	114.92	253.35	2.54

8W Pump CI MF – 50 Hz

Suitable Properties of liquid for PumpSet

Material of Construction

Model De-Code

PERFORMANCE TABLE AND GRAPHS :

Menu

Products

Certificates

Contact

MODEL	STAGE	REQUIRED		l/sec	0.0	19.2	20.5	25.0	27.5	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0	69	73.8	90	99
		HP	kW	l/min	0	1150	1230	1500	1650
8DM078AA-02	2	10.0	7.5	Head in Mtr.	44	31	28	23	20	4"
8DM078AA-03	3	15.0	11		67	47	42	35	30
8DM078AA-04	4	20.0	15		89	62	56	46	40
8DM078AA-05	5	25.0	18		111	78	70	58	50
8DM078AA-05	5	30.0	22		111	78	75	58	50
8DM078AA-06	6	30.0	22		133	93	84	69	60
8DM078AA-07	7	40.0	30		155	109	98	81	70
8DM078AA-08	8	40.0	30		178	124	112	92	80
8DM078AA-09	9	50.0	37		200	140	126	104	90
8DM078AA-10	10	50.0	37		222	155	140	115	100
8DM078AA-11	11	60.0	45		244	171	154	127	110
8DM078AA-12	12	60.0	45		266	186	168	138	120
8DM078AA-14	14	75.0	55		311	217	196	161	140

MODEL	STAGE	REQUIRED		l/sec	0.0	23.3	29.5	35.0	39.2	G Ø Outlet (Inch.)
		REQUIRED		m³/h	0	84	106.2	126	141
		HP	kW	l/min	0	1400	1770	2100	2350
8DM108AA-02	2	15.0	11	Head in Mtr.	45	34	28	20	15	4" OR 5"
8DM108AA-03	3	20.0	15		68	51	41	30	23
8DM108AA-04	4	30.0	22		90	68	56	40	30
8DM108AA-05	5	40.0	30		113	85	75	50	38
8DM108AA-06	6	40.0	30		135	102	84	60	45
8DM108AA-07	7	50.0	37		158	119	98	70	53
8DM108AA-08	8	60.0	45		180	136	112	80	60
8DM108AA-09	9	75.0	55		203	153	126	90	68

Product Details

8W Pump CI MF – 50 Hz

Suitable Properties of liquid for PumpSet

Material of Construction

Model De-Code

PERFORMANCE TABLE AND GRAPHS :

8DM060AA

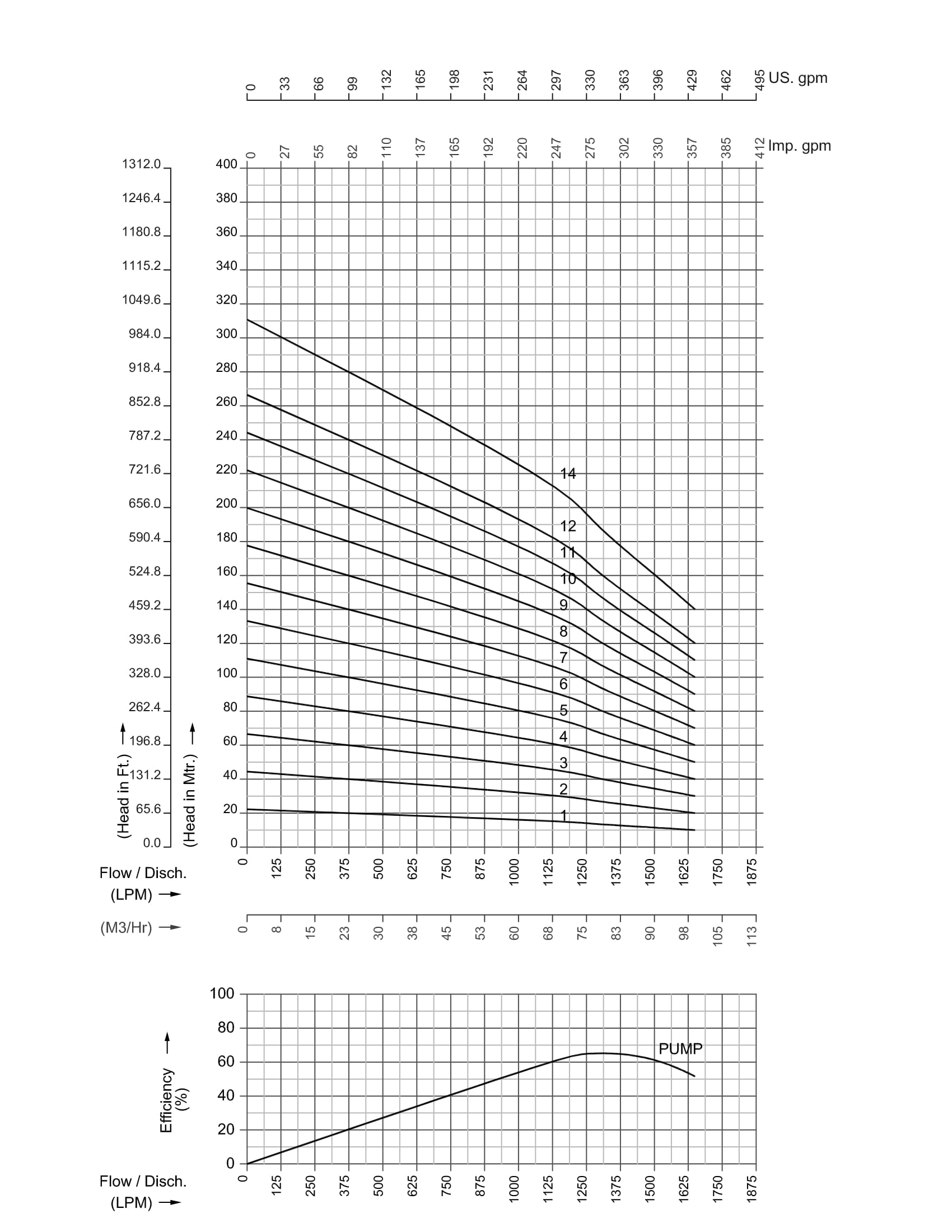

8DM078AA

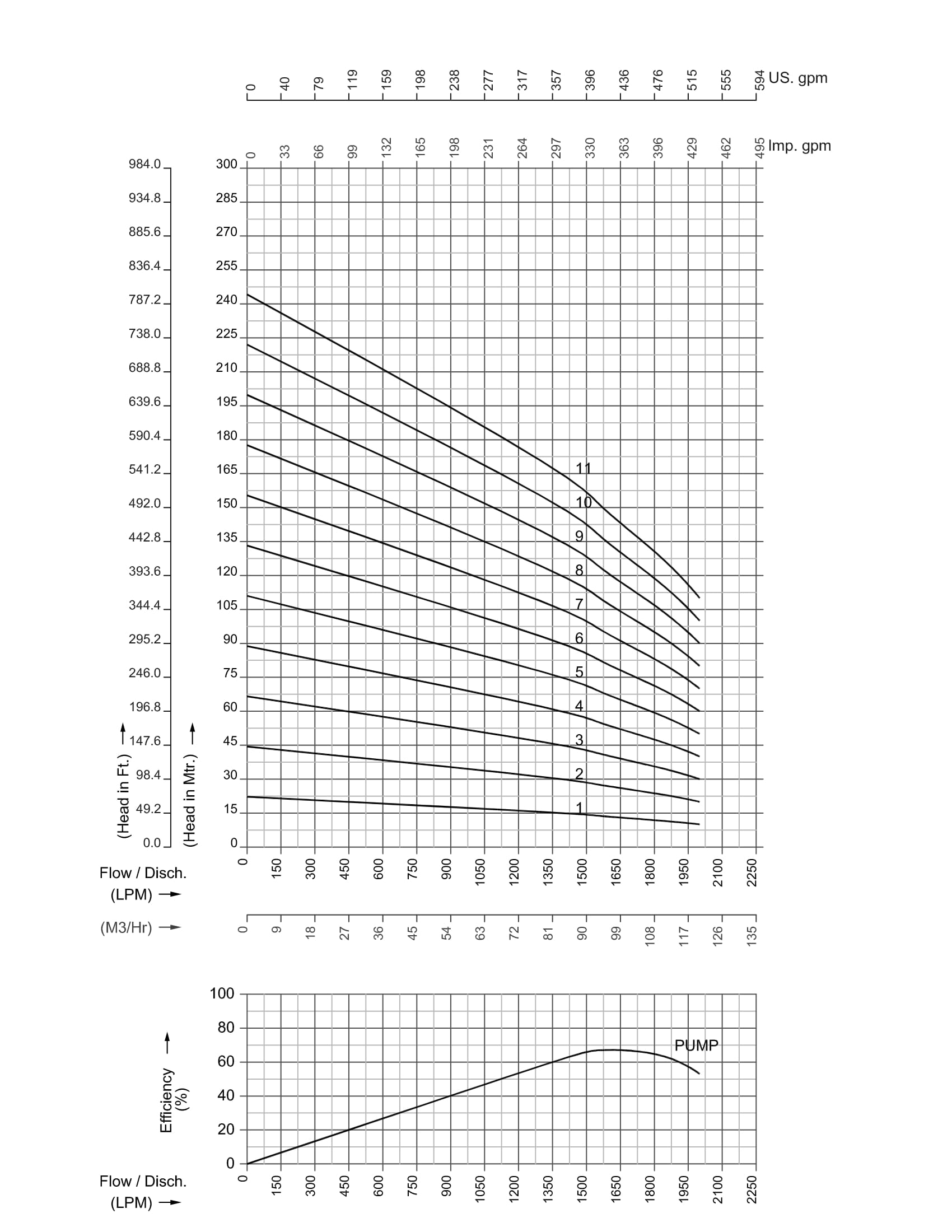

8DM096AA

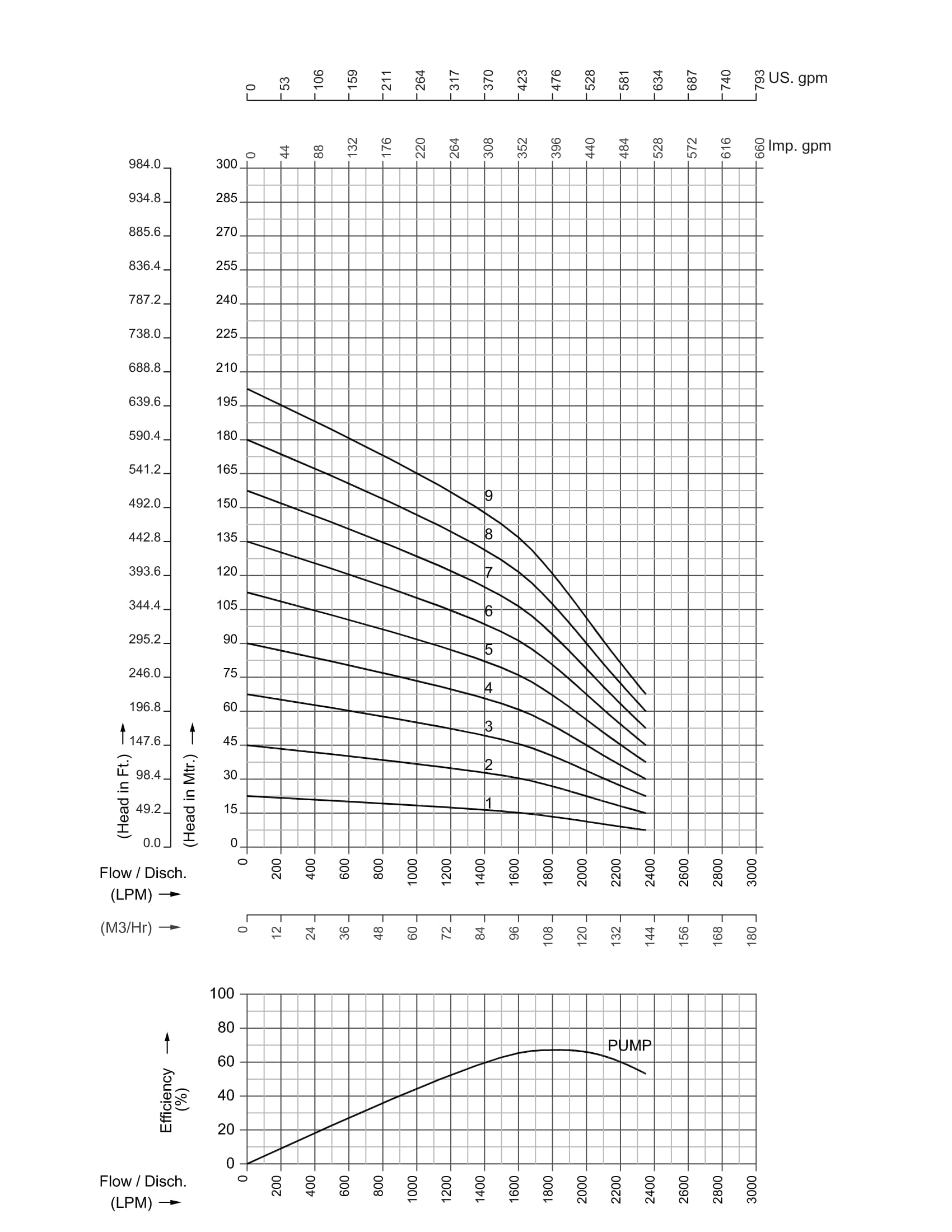

8DM108AA

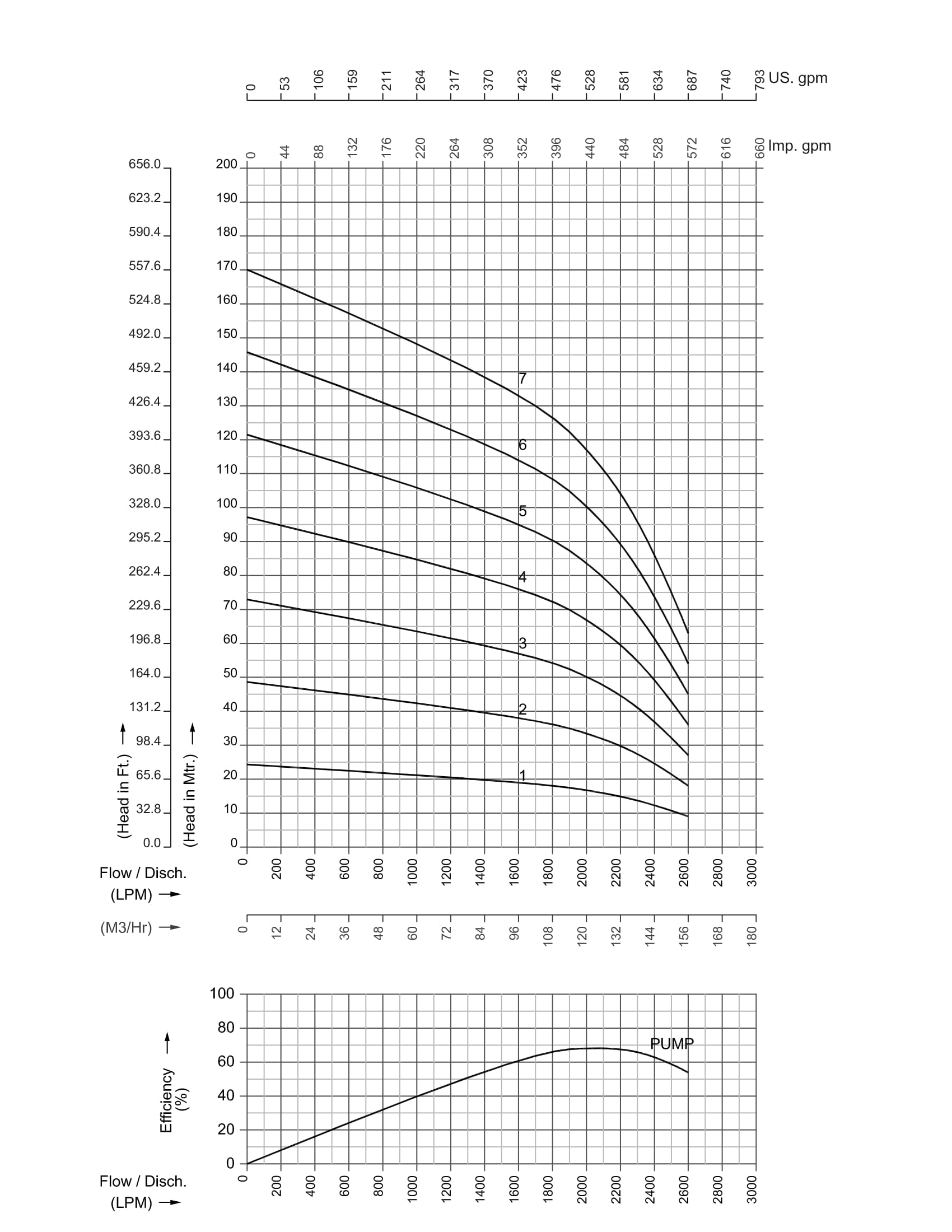

8DM120AA
